Modbus RTU IO Module Bus Adapter Remote Control

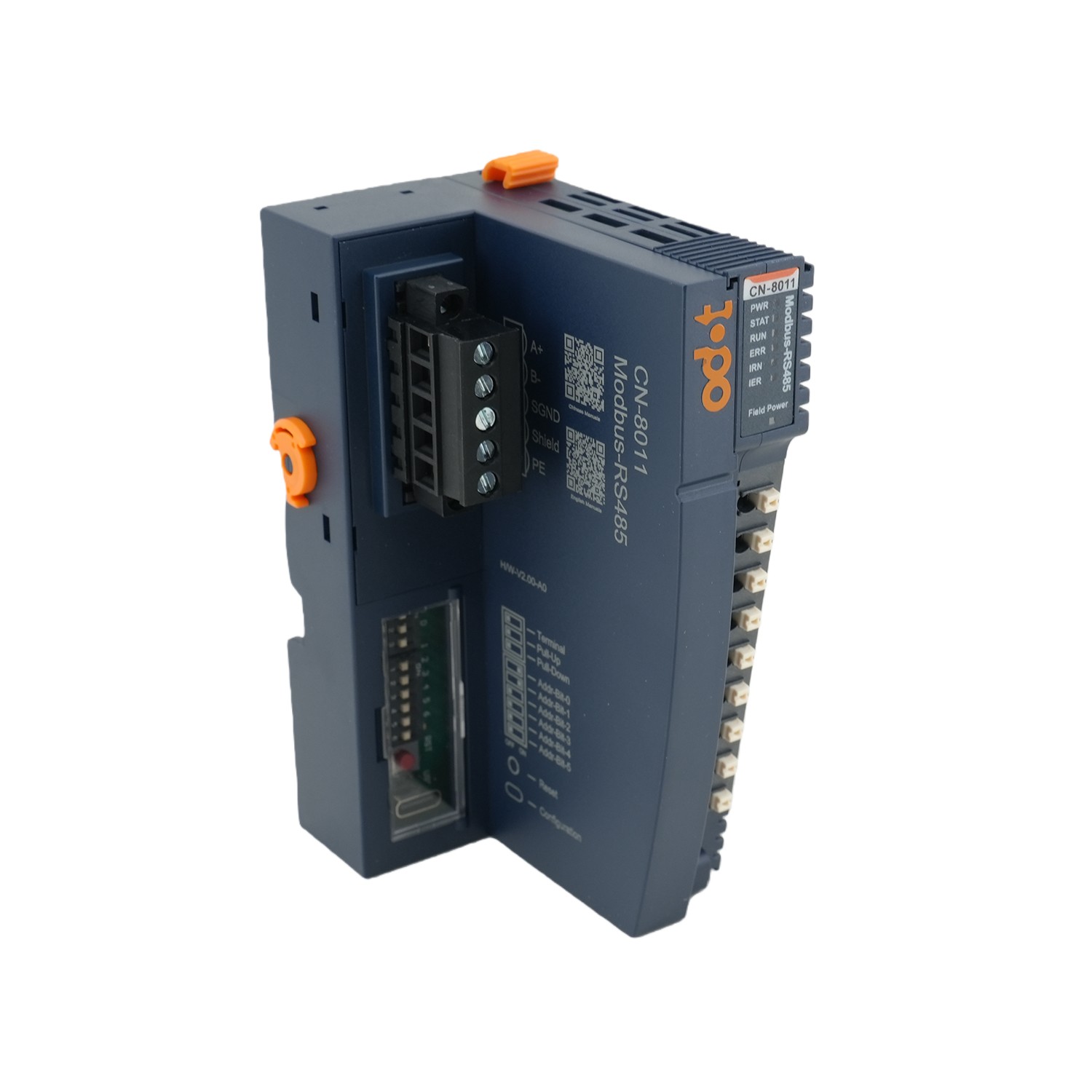

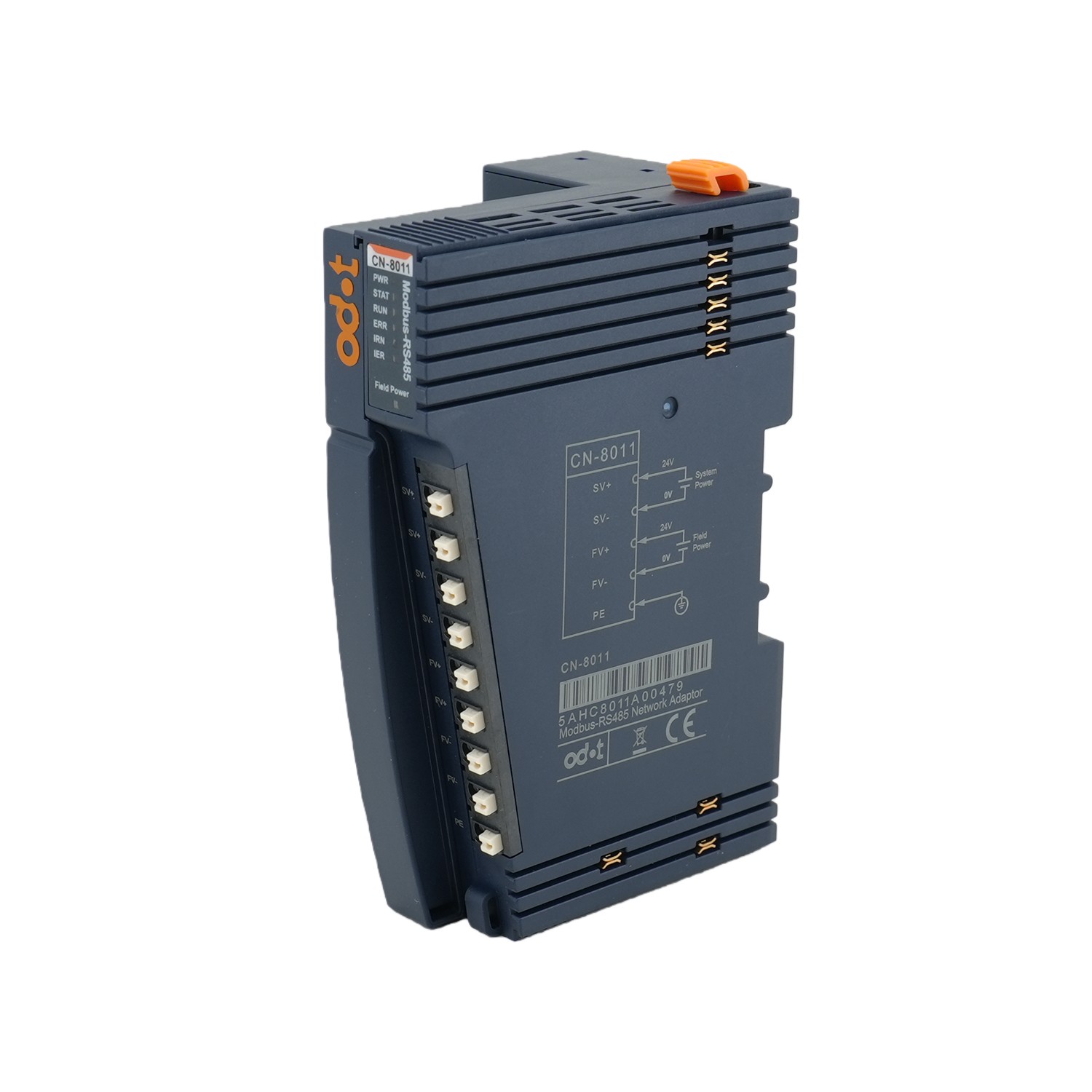

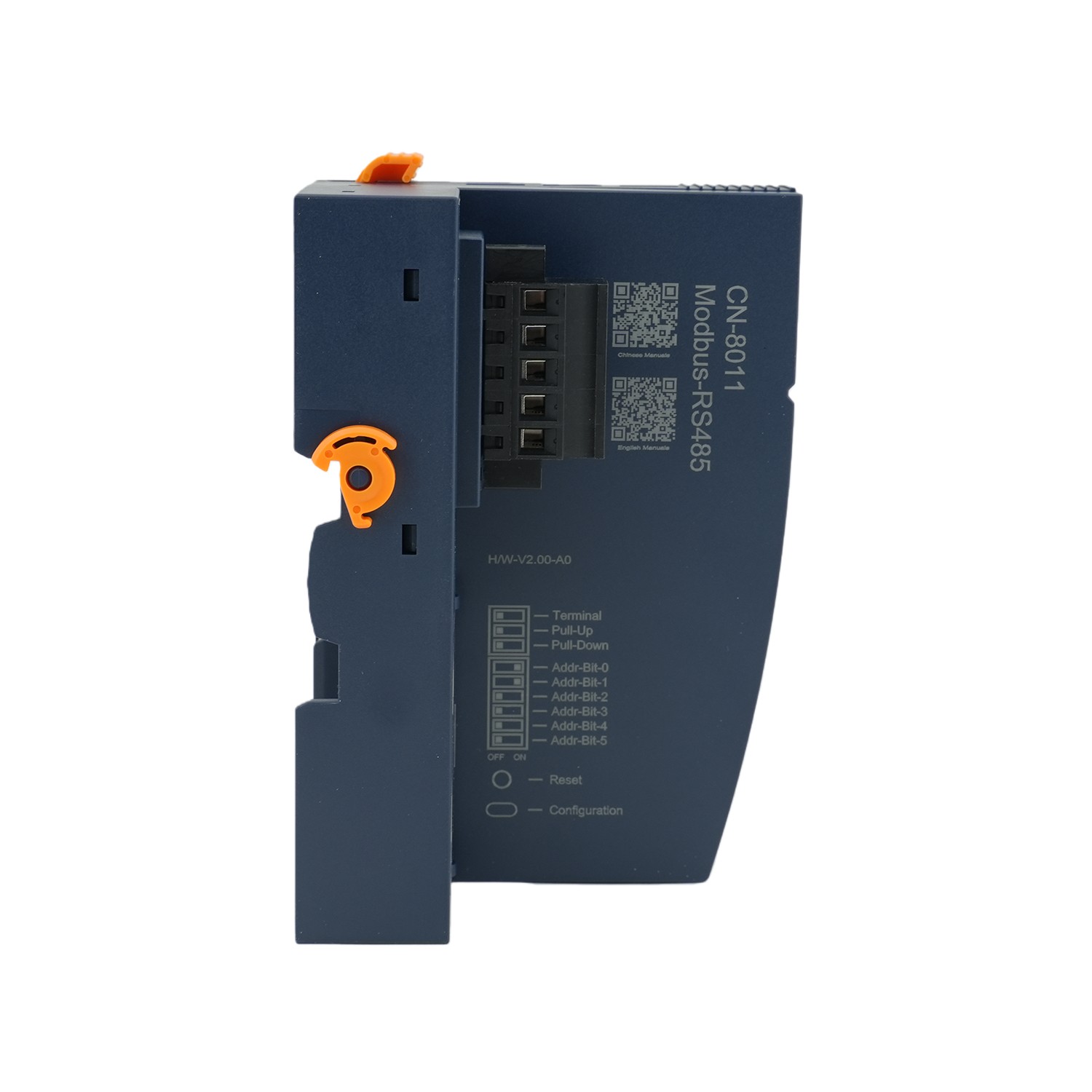

ODOT CN-8011 Modbus-RTU IO Module Bus Adapter Remote Control CN-8011 Modbus-RTU Bus Adapter Module Overview CN-8011 Modbus-RTU network adapter supports standard Modbus-RTU communication, it supports function code of 01/02/03/04/05/06/15/16/23, and this device could monitor the IO module communication state in real time. Technical Parameters Adapter Hardware Parameter Hardware Parameters System Power Nominal:24VDC, Range: 19.2～28.8VDC  Current: Max.2A@24VDC  Protection: Reverse Protection, Overcurrent Protection Power Consumption 30mA@24VDC Internal Bus Supply Current Max.: 2.5A@5VDC Isolation System Power to Field Power Isolation Power Supply Nominal:24VDC, Range: 19.2～28.8VDC Field Power Current Max. DC 8A IO Modules Supported 32 pcs Wiring Max.: AWG 18       Min.: AWG 24 Installation 35mm DIN-Rail Size 115*51.5*75mm Weight 130g Environment Specification Operating Temperature of Vertical Installation -35℃~70℃ Operating Temperature of Horizontal Ins…
