ODOT 1 Modbus TCP IO Module Network Adapter

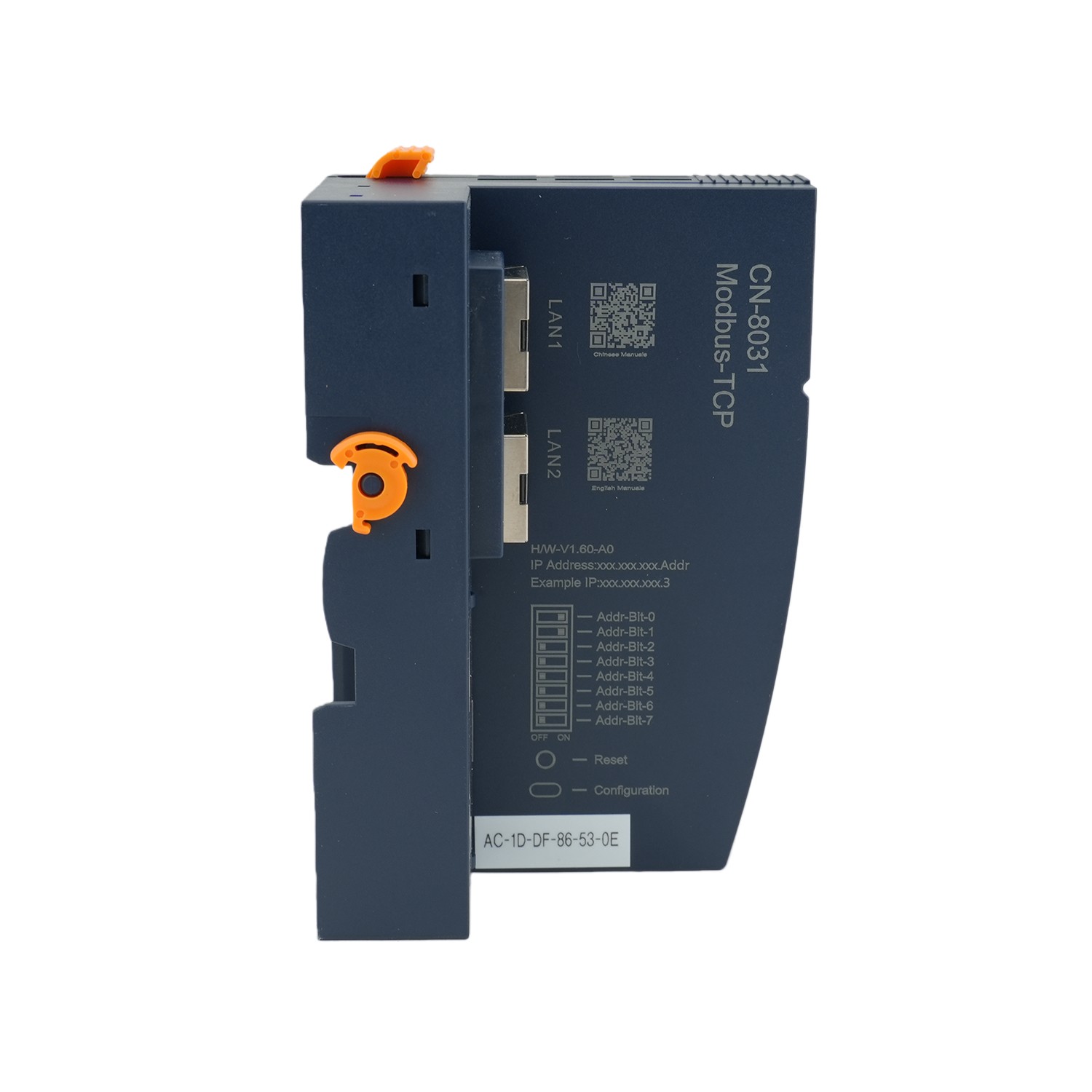

ODOT CN-8031 Modbus TCP IO Module Network Adapter      ODOT CN-8031 Modbus TCP Adapter supports the standard Modbus TCP Server Communication, and Ethernet supports the cascade function of dual-port switches.This adapter supports access to 5 Modbus TCP clients simultaneously, supports Modbus function code 01/02/03/04/05/06/15/16 /23, supports the Modbus application of watchdog, supports the process data maximum sum of input and output of 8192 bytes, and supports number of the extension IO module of 32. Module carries with the diagnostic function and it could monitor the communication status of IO module in real time.  Technical Parameters Hardware Specification System Power Nominal:24Vdc Range: 19.2-28.8Vdc Reverse Protection: YES Power Consumption 50mA@24Vdc Current Output Max. 2.5A@5VDC Isolation System Power to Field Power Isolation Field Power Nominal:24Vdc Range 19.2-28.8Vdc Field Power Contact Max. 8A Expansion Module 32 Slots Wiring Max.1.5mm²(AWG 16)…
