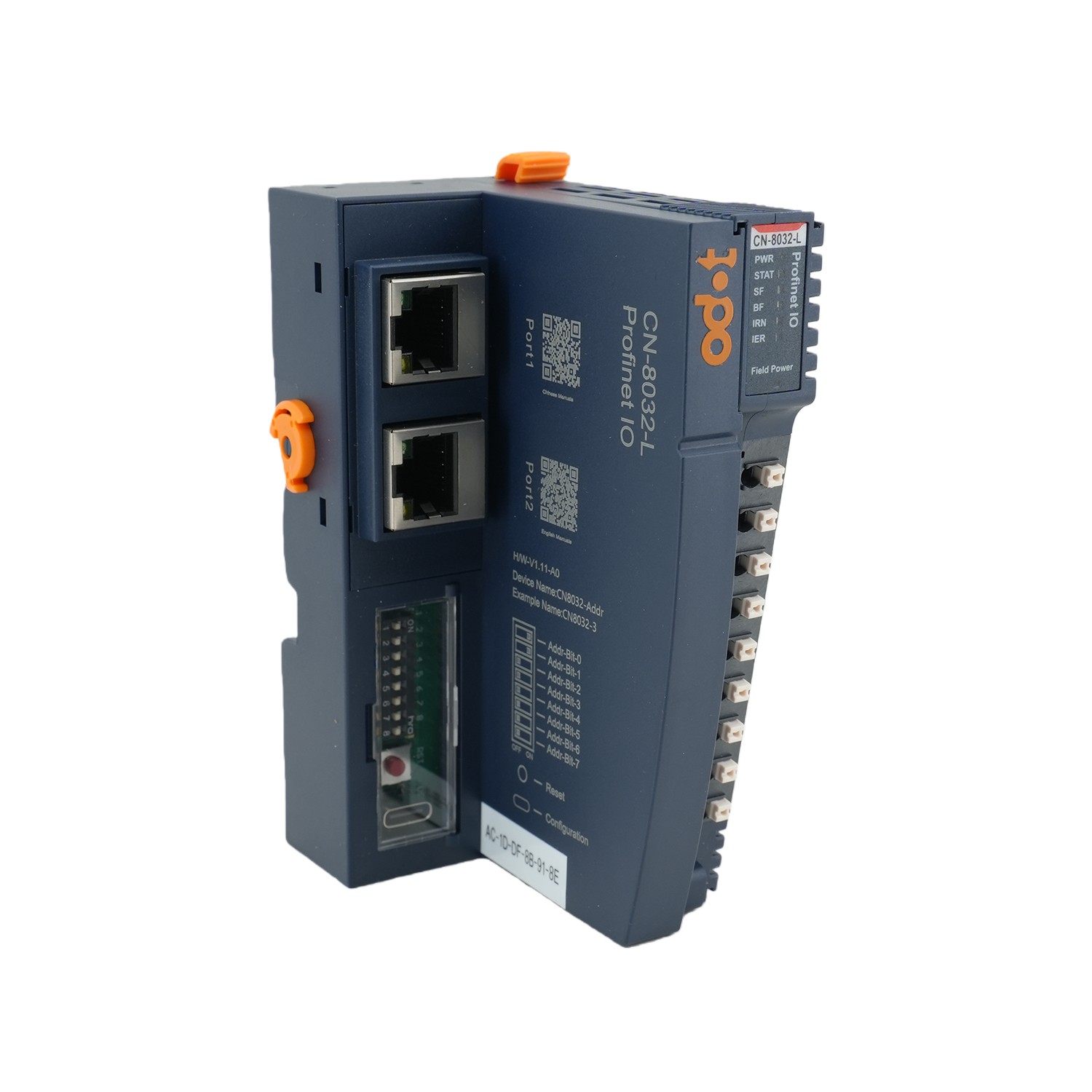

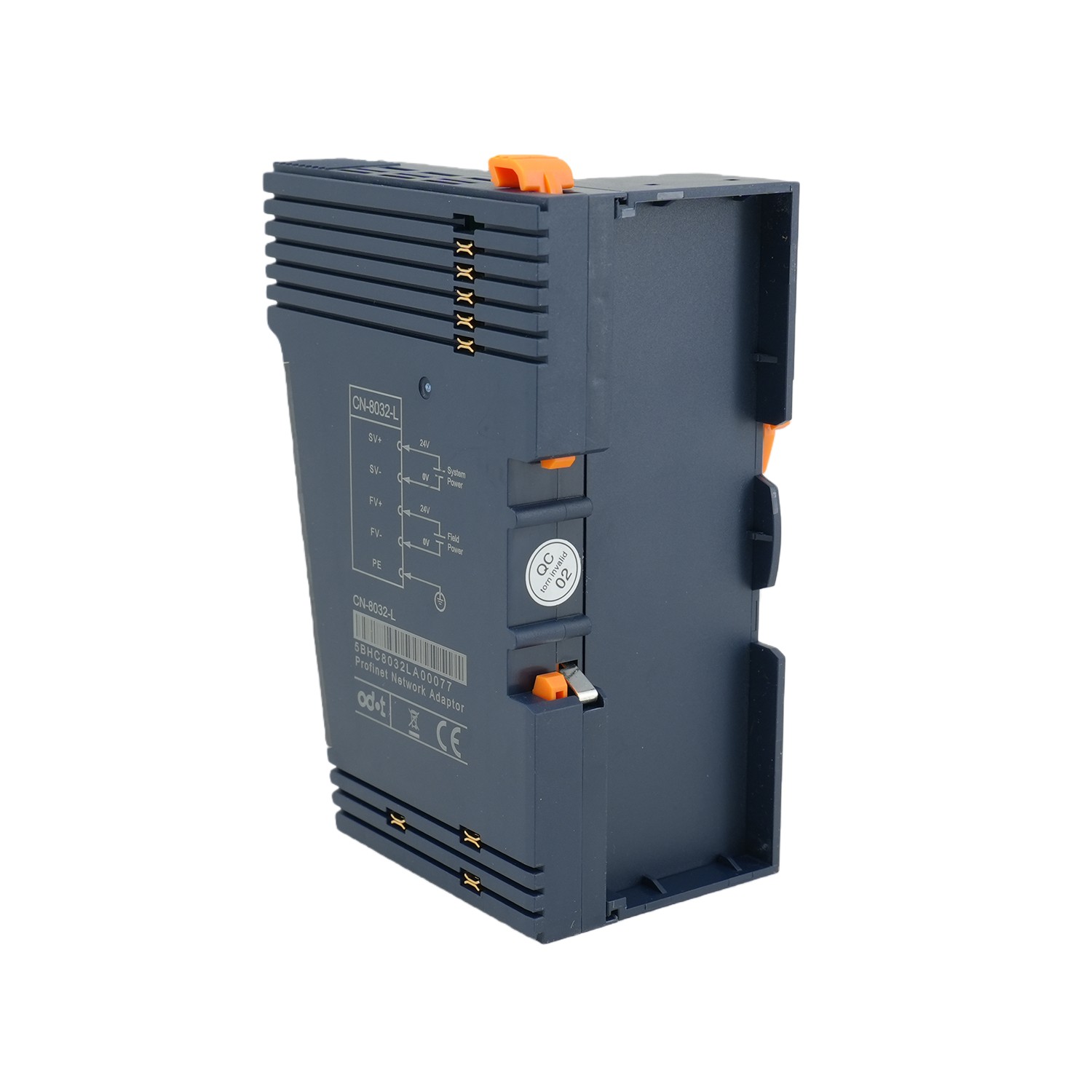

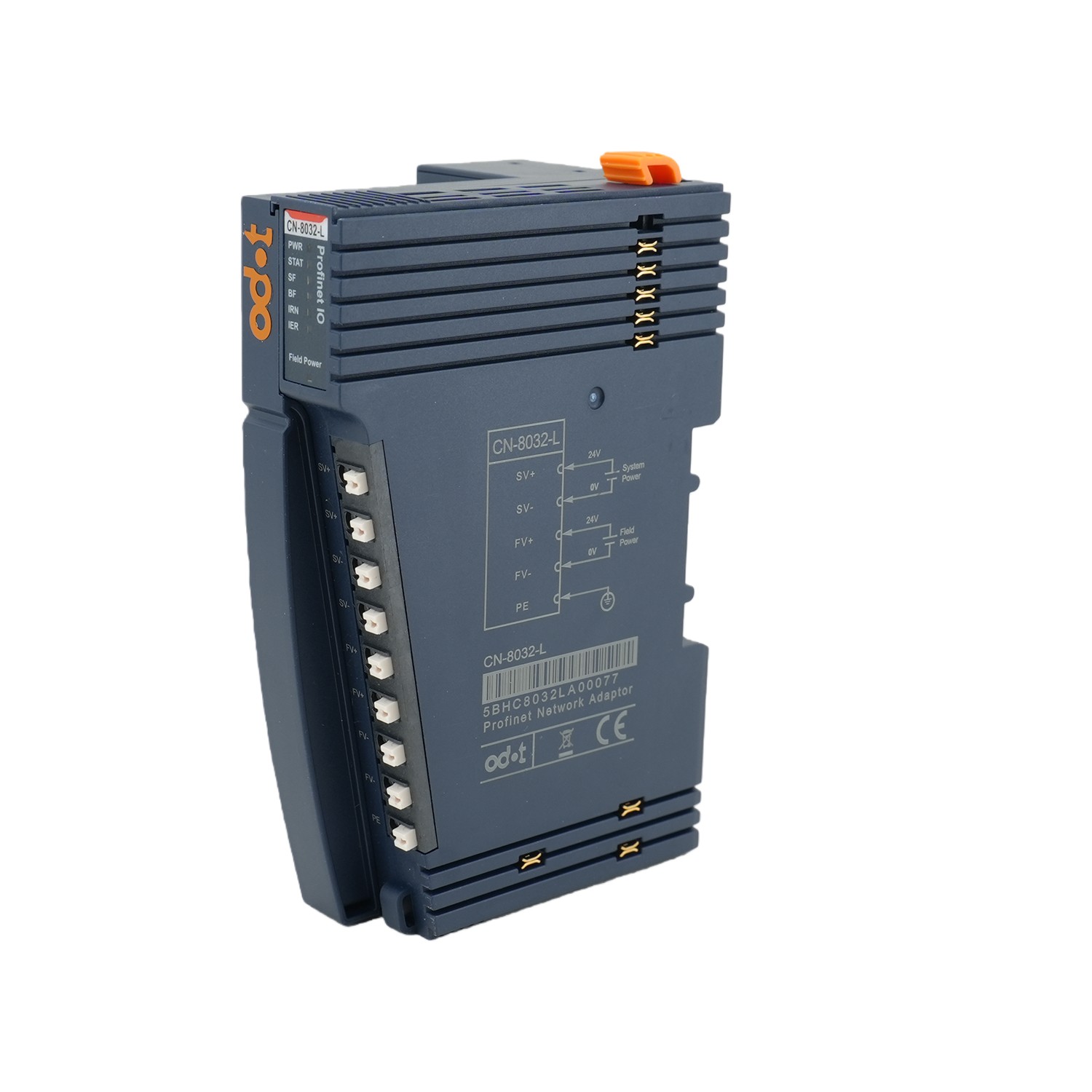

ODOT Profinet IO Module Network Adapter

ODOT CN-8032-L Profinet IO Module Network Adapter Profinet Network Adapter The CN-8032-L Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports no MRP redundancy, and no ring network redundancy. And it supports RT real-time communication mode, with its RT real-time communication minimum period of 1ms. The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32. support no MRP redudancy, no IRT function Please watch our latest Remote IO video at youtube:https://www.youtube.com/watch?v=O86lTEV8UdM&pp=sAQA Technical Parameters Hardware Specification System Power Nominal: 24Vdc Range: 19.2-28.8Vdc Reverse Protection:YES Power Consumption 110mA@24Vdc Current Output Max:2A@5Vdc Isolation System Power to Field Power Isolation Field Power Nominal-24Vdc         Range-19.2-28.8Vdc Reverse Protection YES Field Power Contact Max:8A Expansion Modu…

Analog Output IO Module Modbus Adapter Temperature IO Module Analog Input IO Module Profinet PLC
