Analog RTD Input Module 4CH RTD PT100

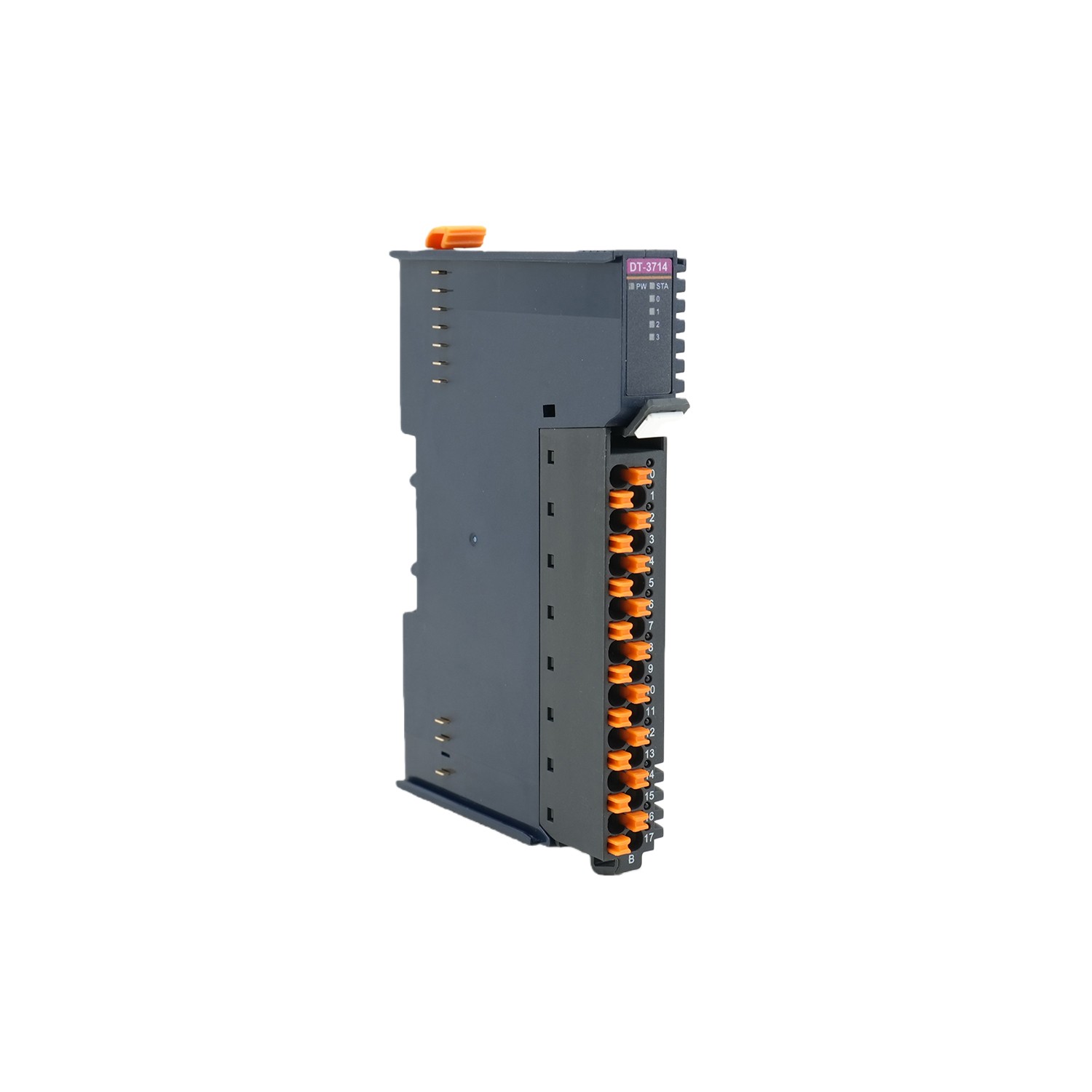

DT-3714 Analog RTD Input Module 4CH RTD-PT100 4 Channels RTD-PT100 Temperature Acquisition Module Module Feature 1.  The module supports channel disable, support the PT-100 2-wire or 3-wire. 2.  The filter level of module is adjustable. 3.  The module supports fault detection (disconnection, short circuit, overflow, underflow, terminal state). 4.  Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters Current Consumption 39mA@5VDC Wirring Diameter Min.0.2mm²(AWG24)   Max.1.5mm²(AWG16) Terminal Pluggable Support Backplane Bus Double bus redundancy Installation 35mm DIN-Rail Dimension 119*14*80mm Product Certification CE Certification Input Parameters Channel Number 4 Channels RTD-PT100 input  Input Range 2-wire or 3-wire Measurement Range  -200~850℃ Resolution 16 bits (include the symbol bit) Transition Time 360ms/4 channels (filter level is 0) Linearity Error ≤±0.01% Measurement Error ≤±0.6℃ (@2…
