EtherCAT Network Adapter Module

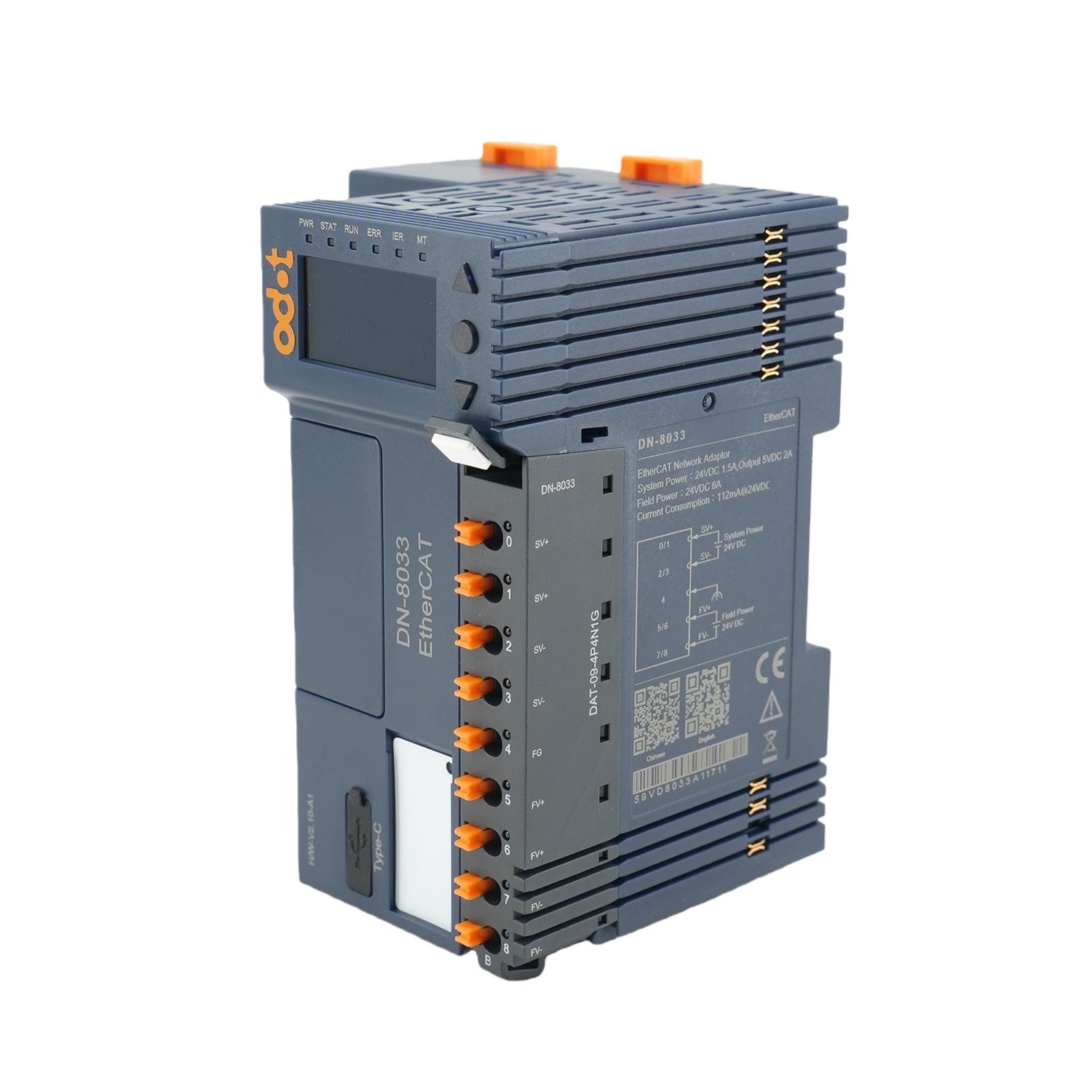

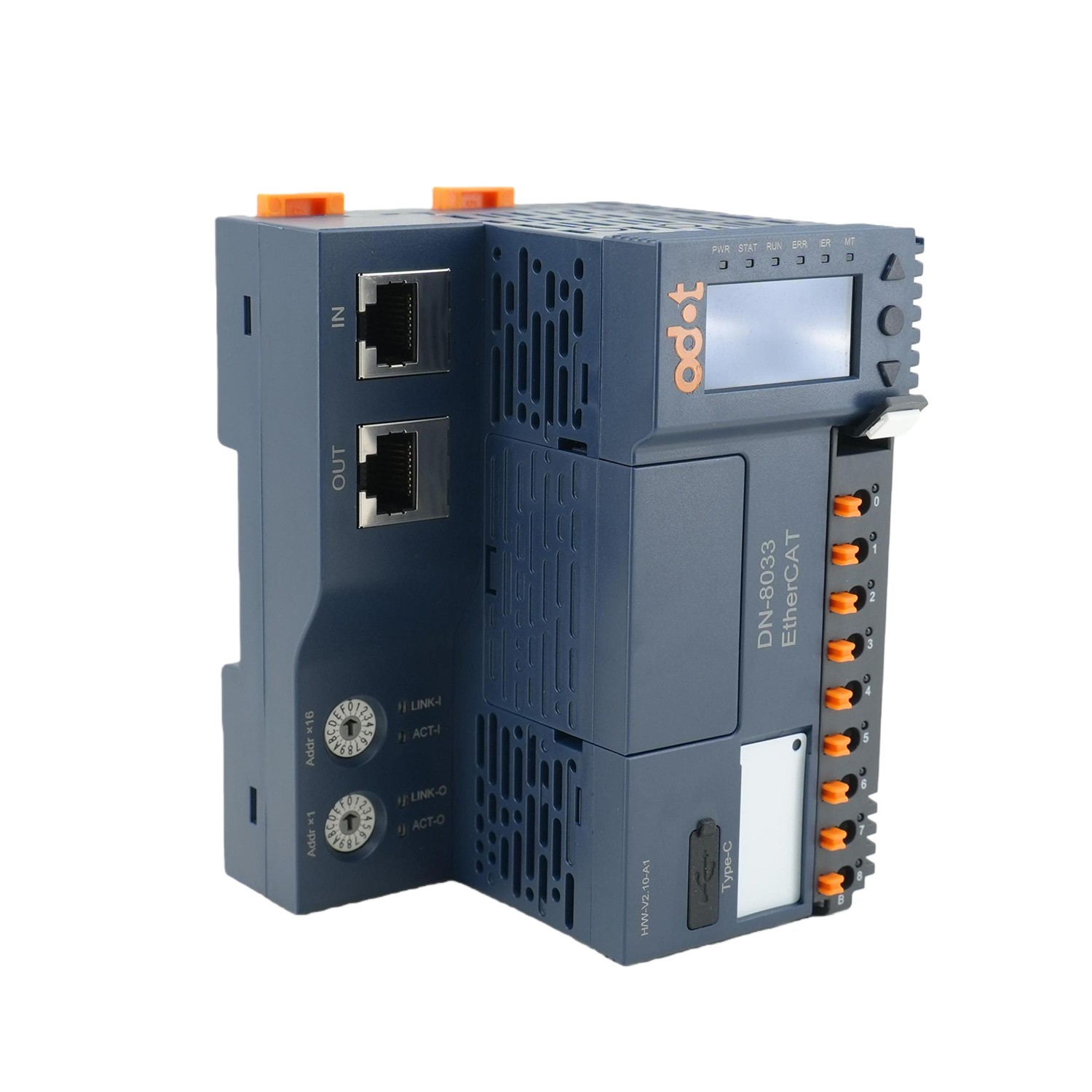

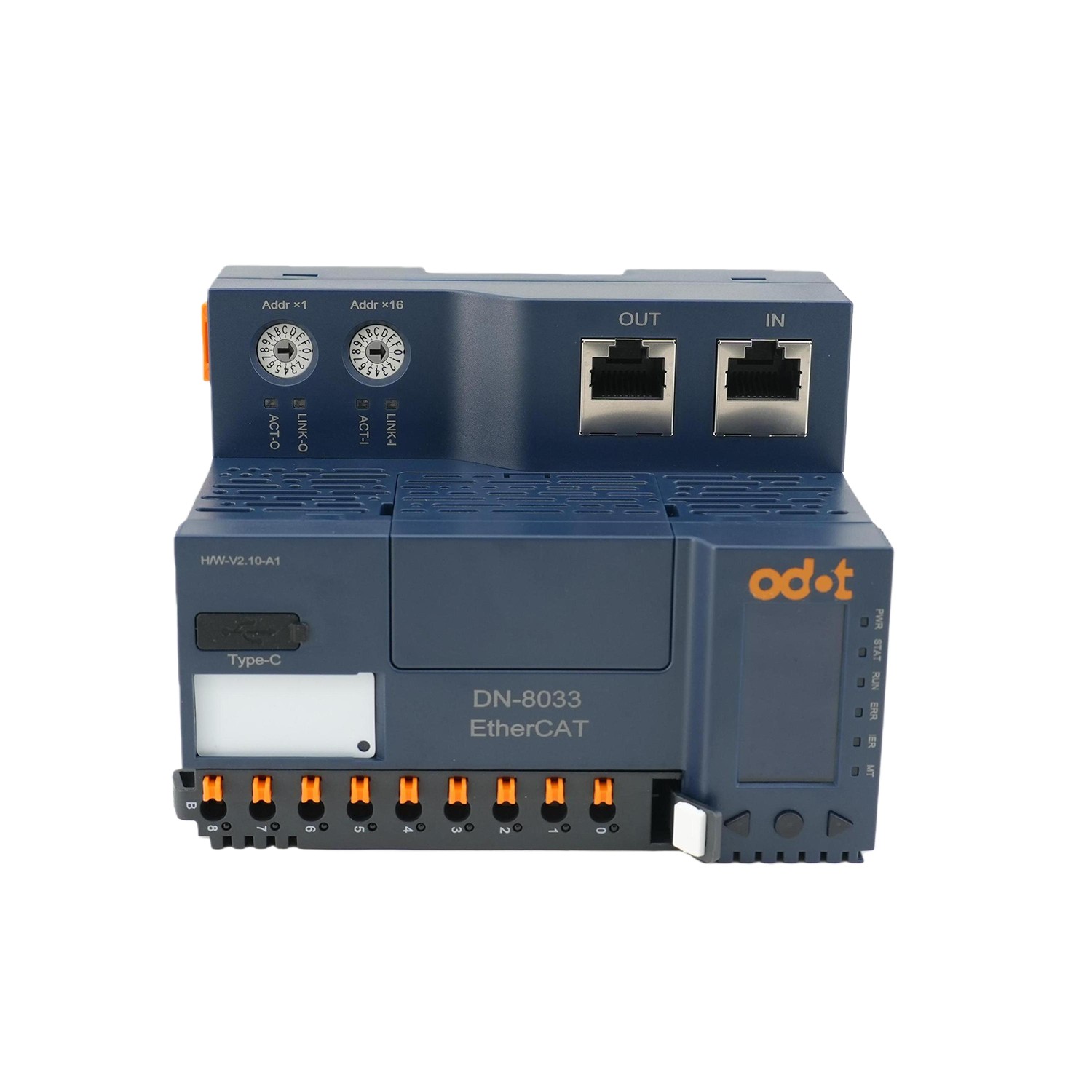

DN-8033 EtherCAT Network Adapter Module Features The DN-8033 is a high-performance EtherCAT network adapter compliant with the standard EtherCAT protocol, featuring 100 Mbit/s Ethernet communication. It supports up to 32 I/O modules with 1024 bytes of input and 1024 bytes of output process data, enabling flexible I/O configuration. The module includes an SDO master function for easy setup via EtherCAT master software.   Built with a high-speed redundant backplane bus, it achieves a full-load refresh cycle of just 0.6 ms. Its pluggable spring terminals (0.2–1.5 mm² / AWG 24–16), staggered layout, and removable design simplify wiring, maintenance, and replacement. Full isolation between internal bus, system power, and field power ensures immunity from external interference.   Onboard LEDs and an integrated OLED screen provide real-time diagnostics and instant access to key parameters—no software required.   Technical Parameters General Parameters Module Consumption 112mA@24VDC…
