Network Adapter for PROFINET

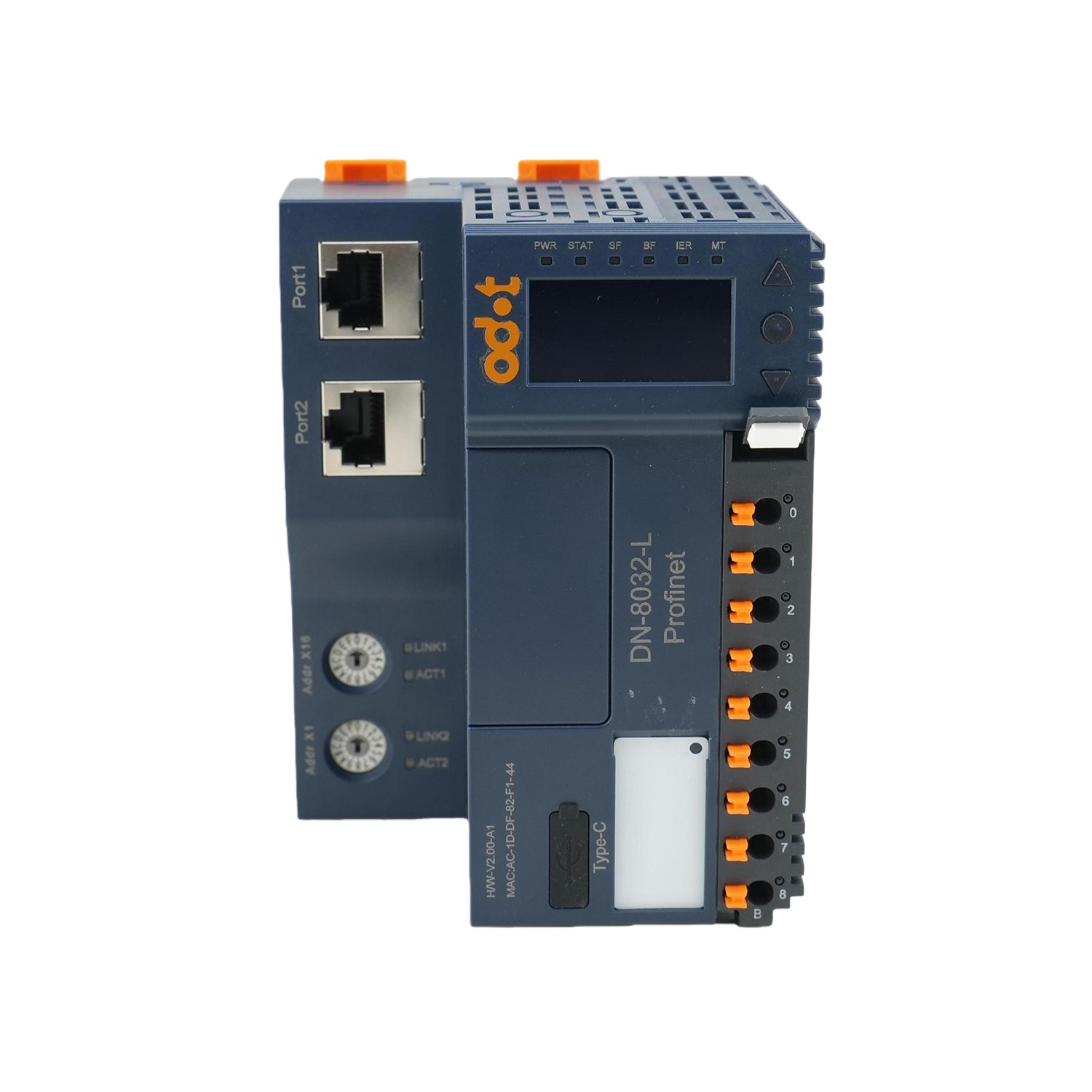

Network Adapter for PROFINET Module Features The DN8032-L network adapter supports standard PROFINET IO Device protocol, and it supports dual network port switch cascade function; The module supports up to 32 IO modules expansion, the maximum input of process data is 1440 bytes (Each submodule is 1 byte and is associated with the state of the input data).  The module not supports the MRP media redundancy and the redundant ring network, it supports RT real-time communication mode, RT real-time communication minimum period is 1ms; Module high speed redundant backplane bus, and the refresh cycle of full load is 0.6ms; Module two-stage installation is more convenient, staggered layout spring light guide terminals, and the terminal is pluggable, it is easy to maintenance and replacement, the wiring diameter is 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16); The OLED screen can view the module related parameters, it can acquire some important information without the software.  Technical Parameters Gen…
