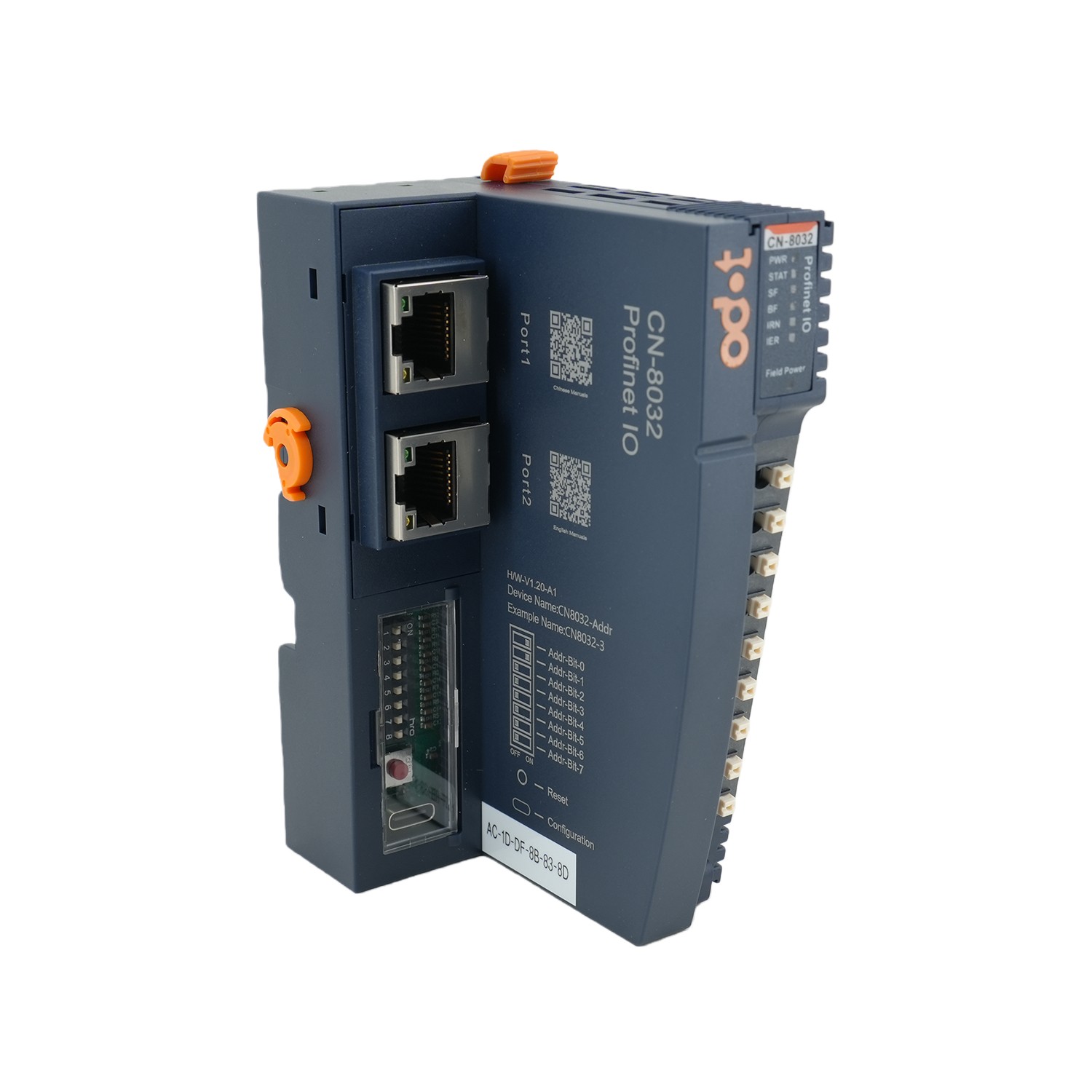

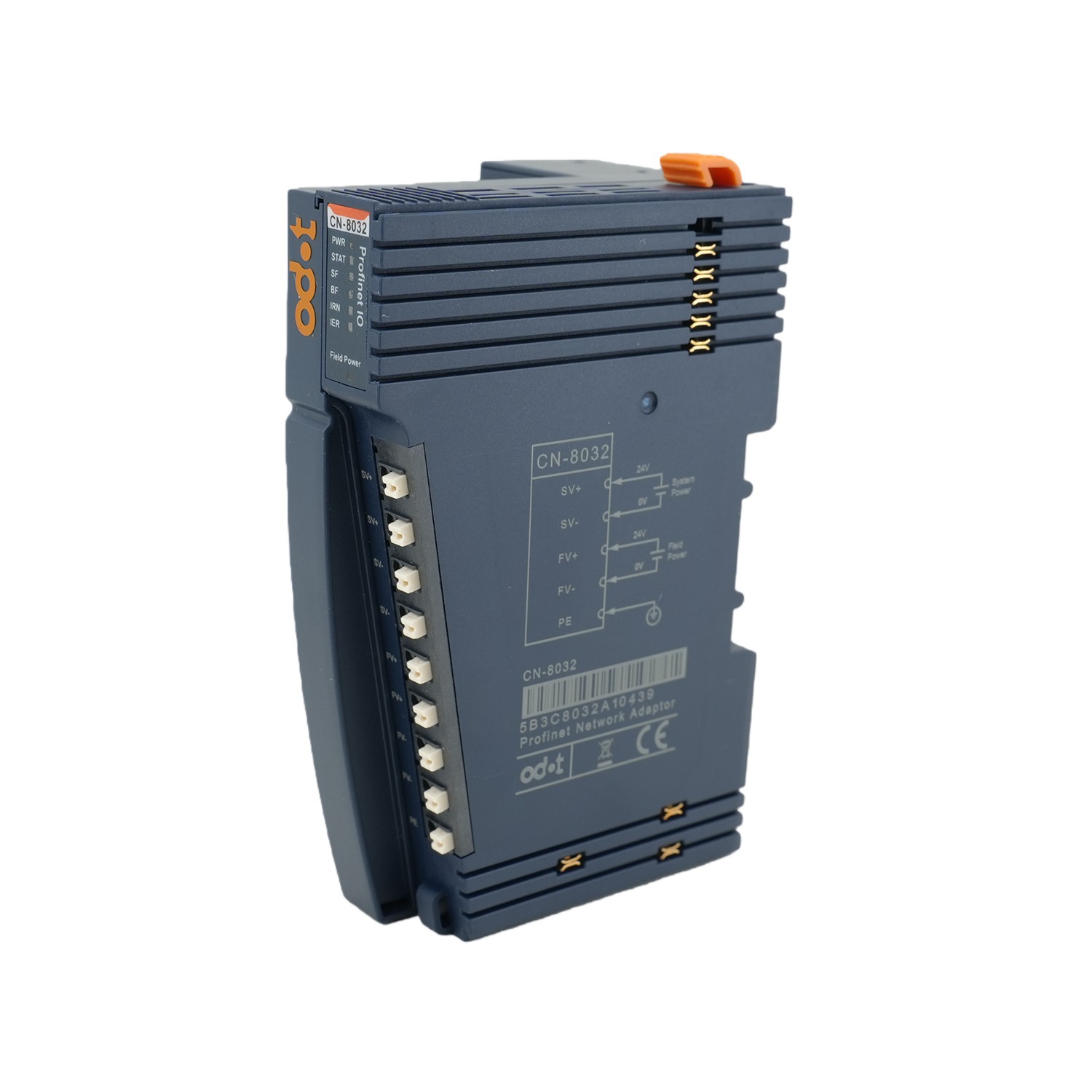

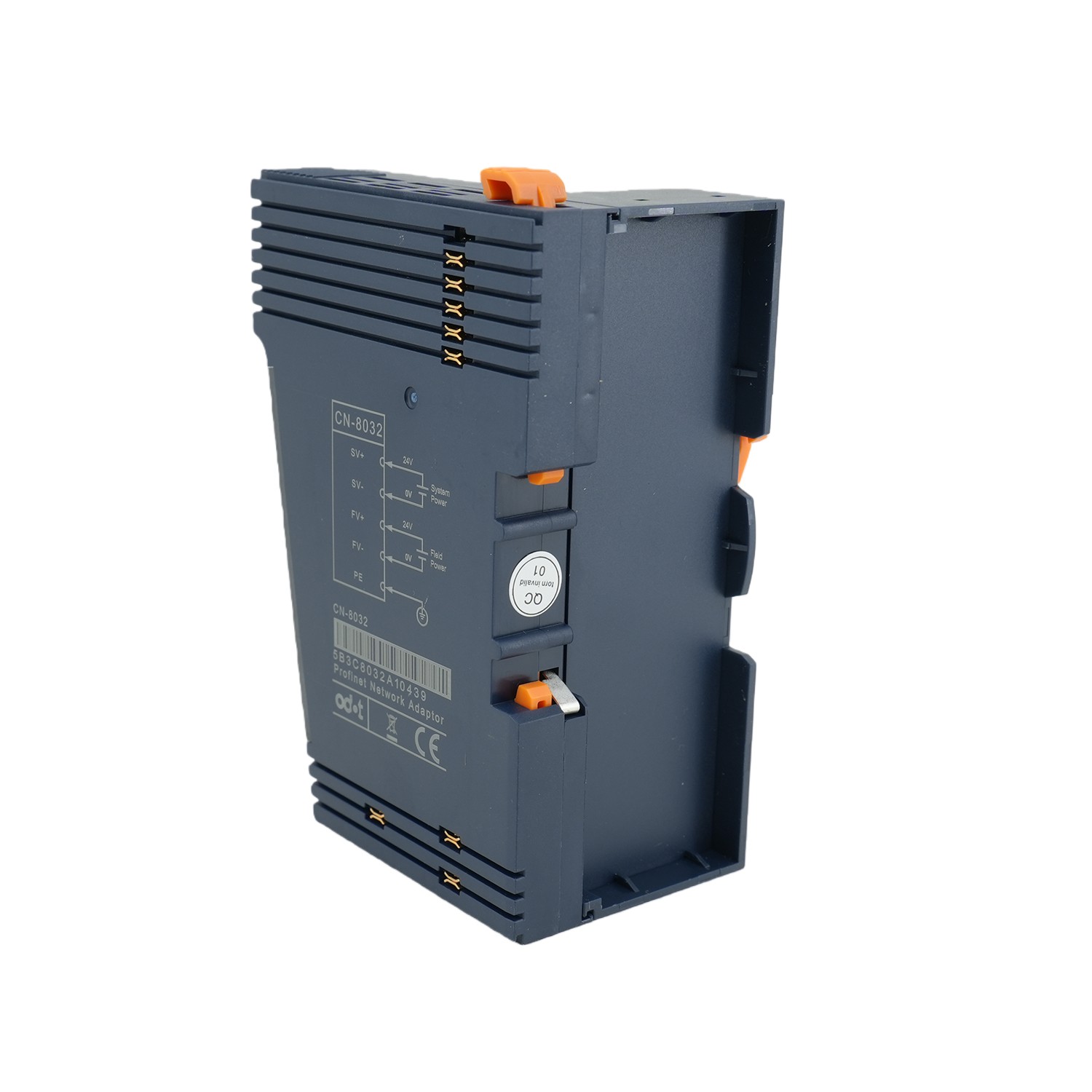

Profinet RT IRT PLC Adapter

Profinet RT IRT PLC Adapter ODOT CN-8032 PROFINET network adapter enables fast integration of distributed I/O into PLC systems,ideal for packaging, intralogistics, and assembly lines. Product Feature: The CN-8032 Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports MRP media redundancy, and it could realize ring network redundancy. And it supports RT/IRT real-time and synchronous communication mode, with its RT real-time communication minimum period of 1ms and IRT synchronous communication minimum period of 250us.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32. Hardware Specification System Power Nominal: 24VDC, Range: 19.2～28.8VDC Current: Max.2A @ 24VDC Protection: Reverse Protection, Overcurrent Protection Power Consumption 110mA @ 24Vdc Internal BUS Supply Current Max:2A @ 5Vdc Isolation System Power to Field Power Isolation F…
