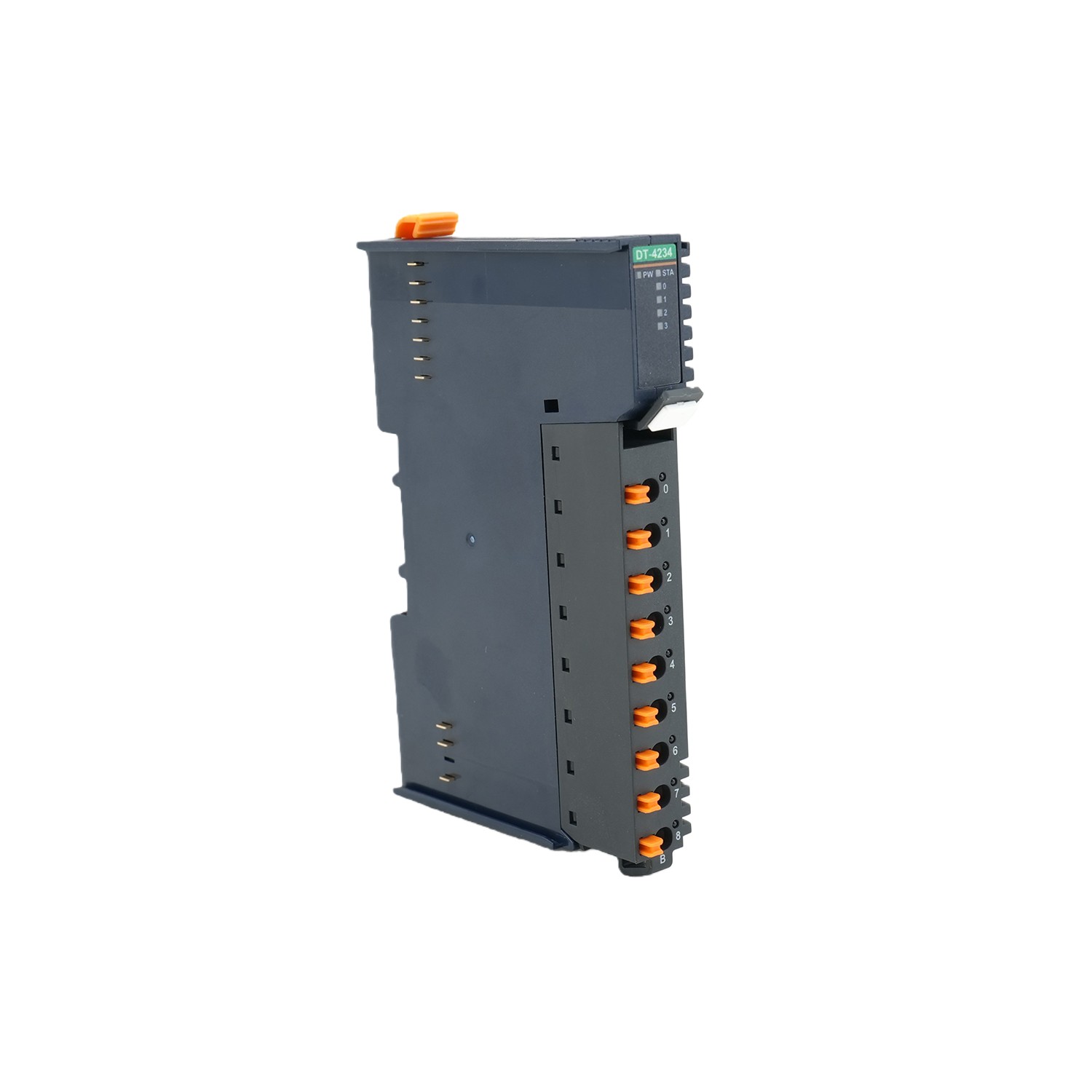

DT 4234 Analog Current Output Module 4AO

DT-4234 Analog Current Output Module 4AO 4 Channels Current Output 0&4~20mA/16-bit Module Features 1.   0-20mA or 4-20mA output range can be set. 2.   The module internal bus and field output adopts capacitive isolation. 3.   Module output signal is a single-end common ground output. 4.   Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters Current Consumption 35mA@5VDC Field Power  19.2~28.8VDC (Nominal: 24VDC) Wirring Diameter Min.0.2mm²(AWG24)   Max.1.5mm²(AWG16) Terminal Pluggable Support Backplane Bus Double bus redundancy Installation 35mm DIN-Rail Dimension 119*14*80mm Product Certification CE Certification Output Parameters Channel Number 8 channels current output  Resolution 16 bits Output Range  0~20mA/4~20mA Transition Time 1ms/4 channels (the filter level is 0) Input Impedance  Max.500Ω Linearity Error ≤±0.03% Temperature Error  ≤±0.005%/K Repeatability ≤±0.05%  Measureme…
