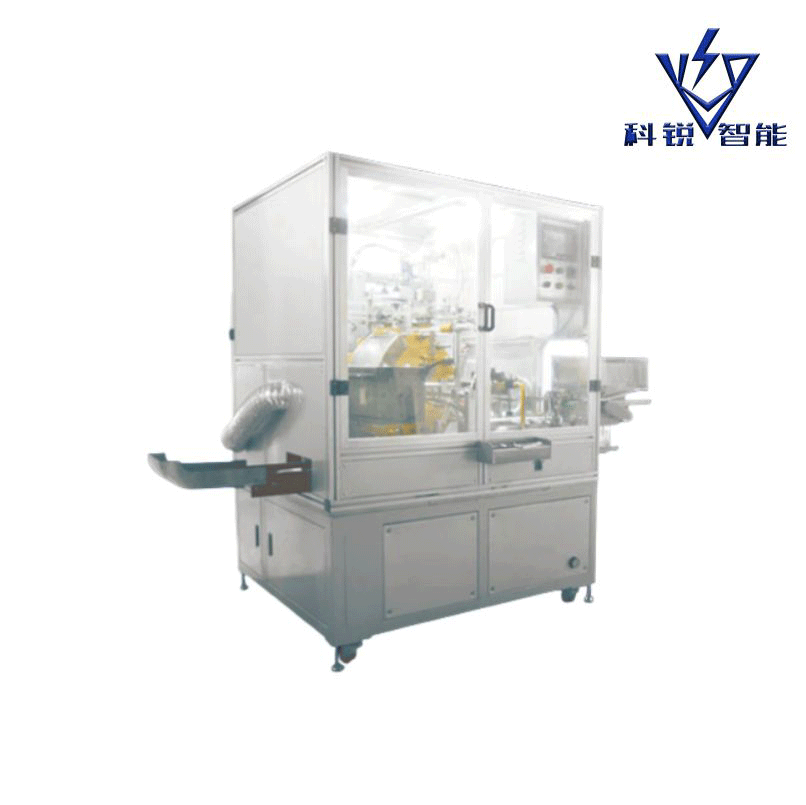

Rotary UV screen printing machine

The rotary UV screen printing machine is a highly efficient screen printing equipment that combines rotary conveying and UV curing technology. It is suitable for batch printing on flat surfaces, curved surfaces and irregular small items, and is widely used in fields such as cosmetic packaging, electronic components, stationery and small plastic parts. ​ The equipment adopts a high-precision rotary conveying system. Through the continuous operation of multi-station turntables, it realizes an integrated operation of feeding, printing, UV curing and discharging. The single-hour production capacity can reach 2,500 to 4,000 pieces, which is 40% more efficient than traditional screen printing machines. The positioning accuracy of the rotating wheel reaches ±0.05mm. Combined with the precision scraping and printing component, it supports 100-500 mesh screens and can clearly present 0.15mm fine lines, ensuring sharp edges of the pattern. ​ The core advantage lies in the UV instant curing tech…
