UQK Series Float Level Switch

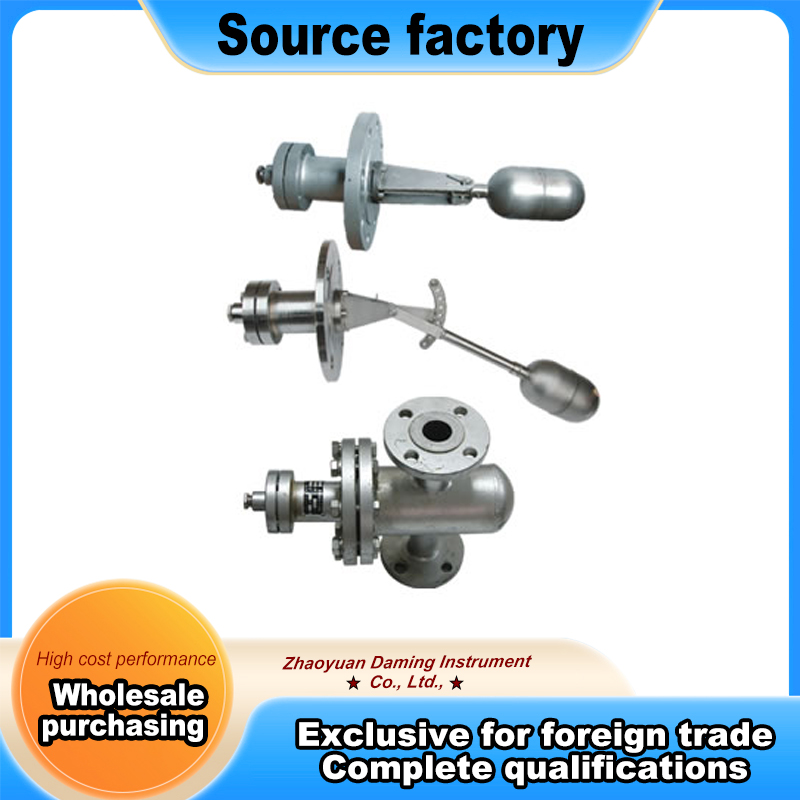

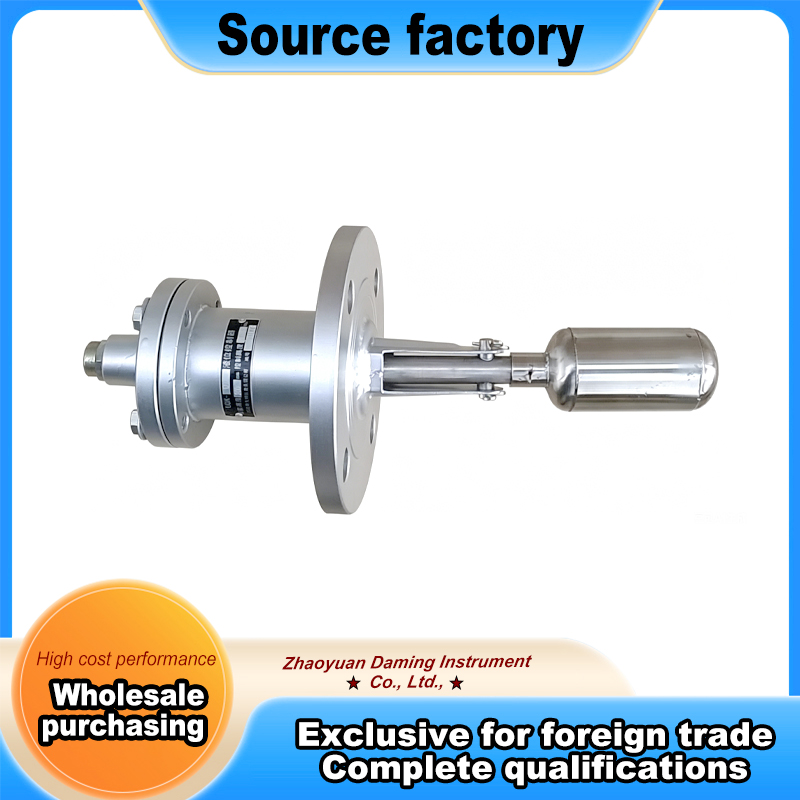

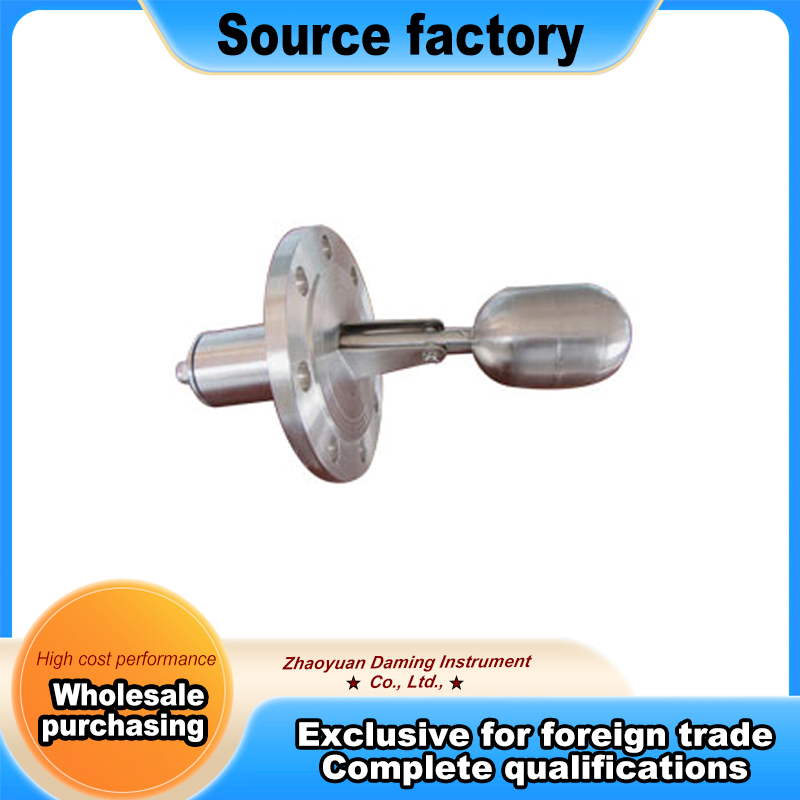

UQK Series Float Level Switch Side Mount Type The Float Level Switch includes this UQK series float level switch. The unit mounts on the side wall of the tank through a flange. No top opening is needed. Installation does not require emptying the tank. This reduces construction difficulty and downtime. The switch body can be removed from outside for maintenance. No entry into the tank is needed. This is safe for toxic flammable and high temperature media. The unit works for vertical tanks horizontal tanks and reactors with limited top space. A float sits on the end of a lever arm. The float rises and falls with the liquid level. The lever movement drives a magnetic coupling. The magnetic coupling activates the switch contact inside the sealed housing. The tank interior and exterior are completely isolated. No mechanical seal passes through the tank wall. This gives zero leakage risk. This UQK series includes three models with different range options. UQK-01 has a fixed short range. It…
