Top Mount Stainless Steel Magnetic Level Gauge

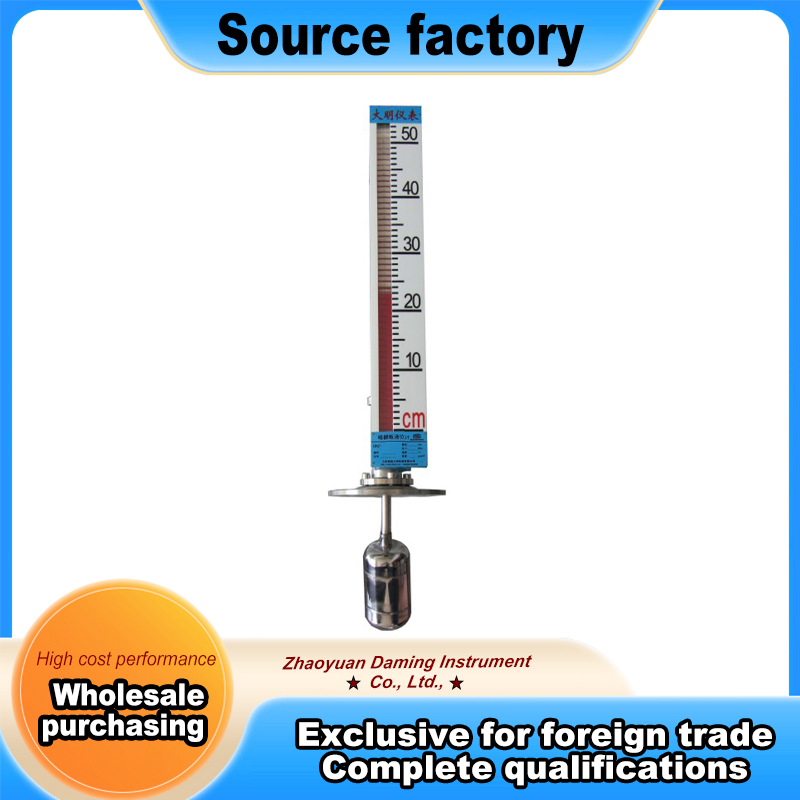

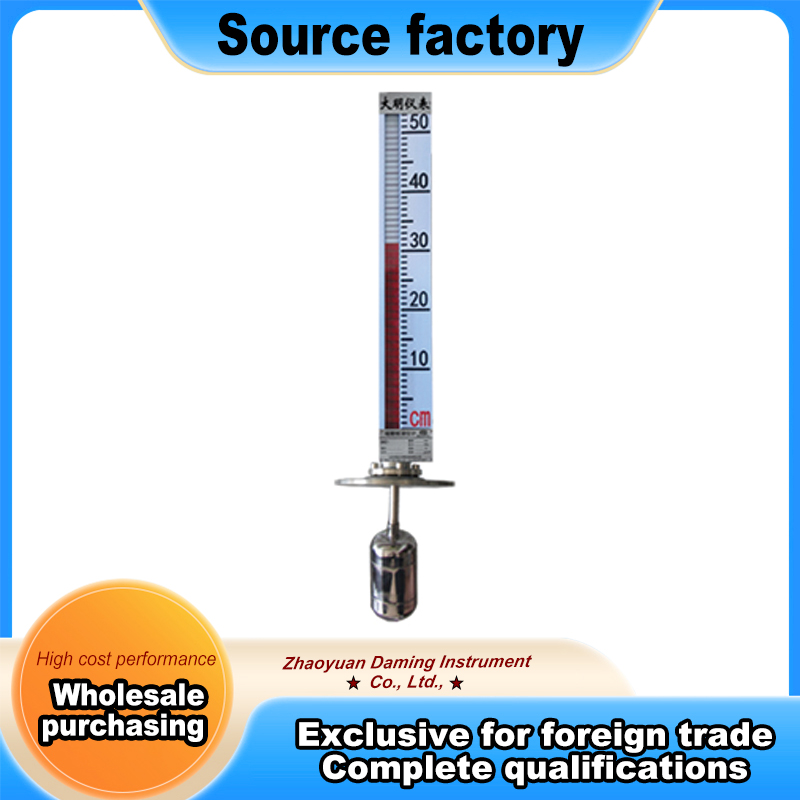

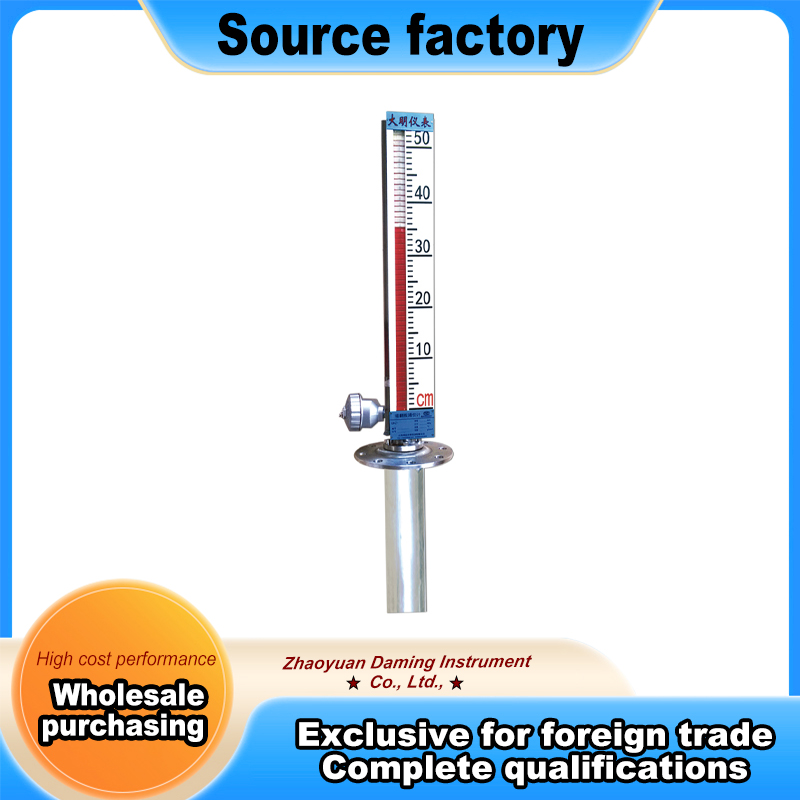

Top Mount Stainless Steel Magnetic Level Gauge The UHZ Series Magnetic Level Gauge includes this top mount stainless steel magnetic level gauge. The unit mounts on the top of the tank through a flange. A magnetic float sits inside the stainless steel guide rod. The float rises and falls with the liquid level. The float magnetic field turns the red and white flags outside the rod. The red flags show the liquid level position. The white flags show the area above the liquid. This gives a clear direct reading with no power needed. The housing and guide rod are made from 304 or 316L stainless steel. The unit is designed for tanks that cannot have side openings. This includes spherical tanks horizontal tanks and underground storage tanks. The top mount design requires no hole on the tank side wall. The magnetic coupling keeps the process liquid separate from the indicator. No seals pass through the rod wall. This gives zero leakage of hazardous or volatile media. This transmitter has a meas…
