4MPa Pressure Resistant Level Gauge

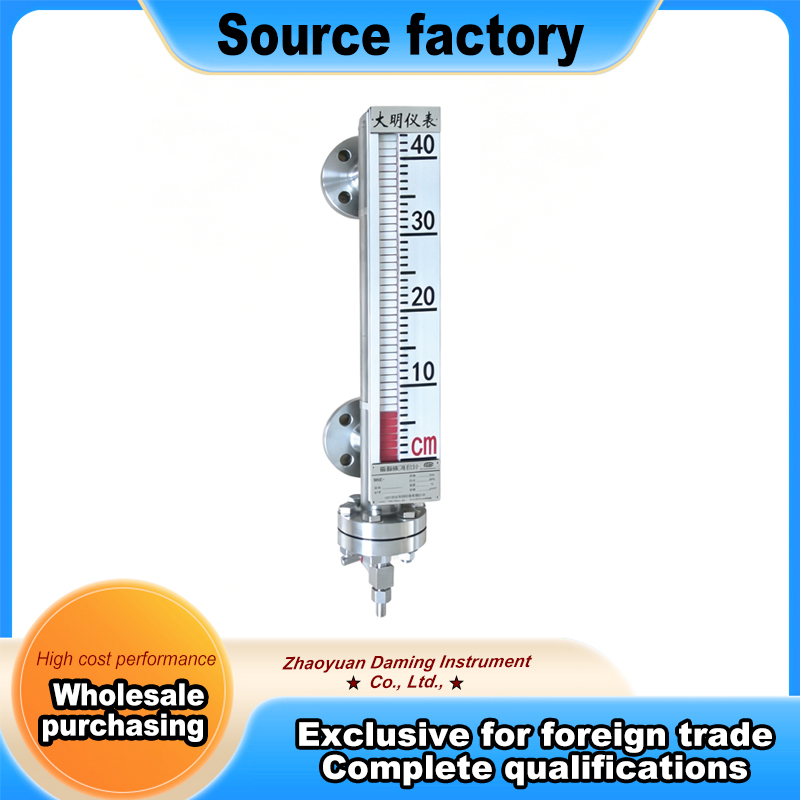

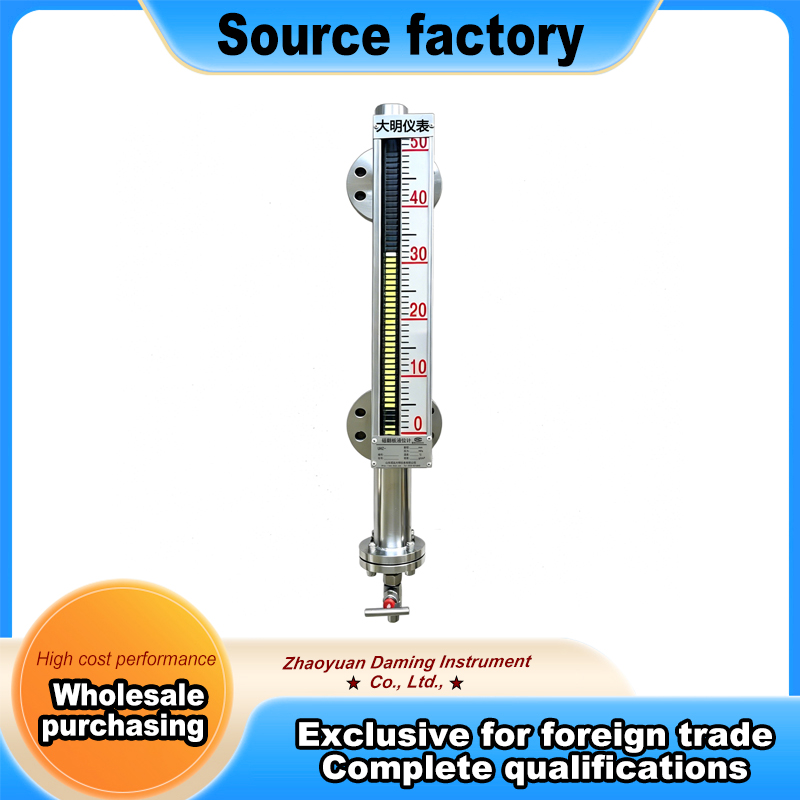

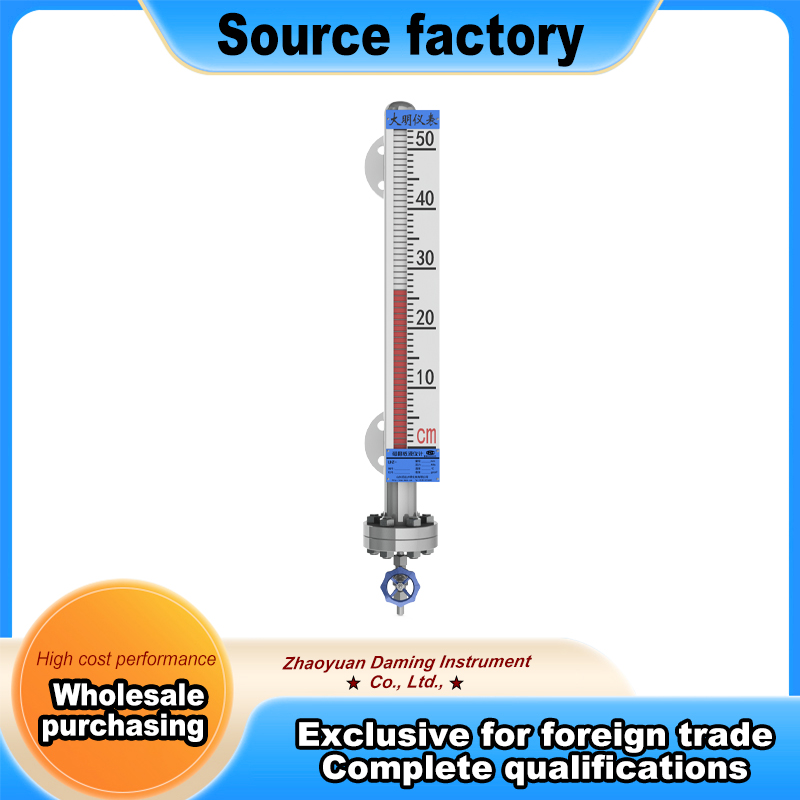

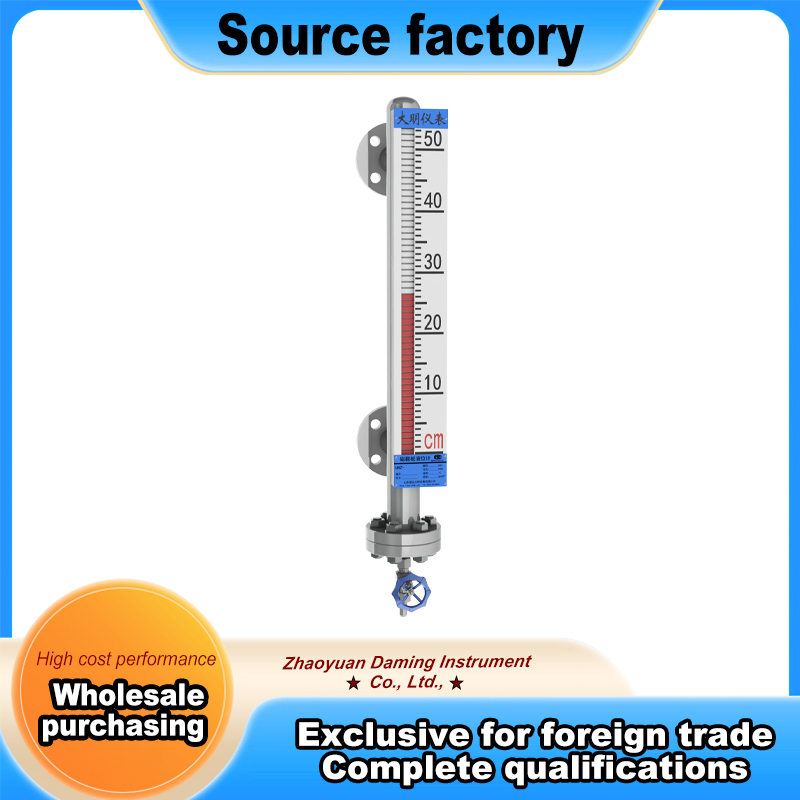

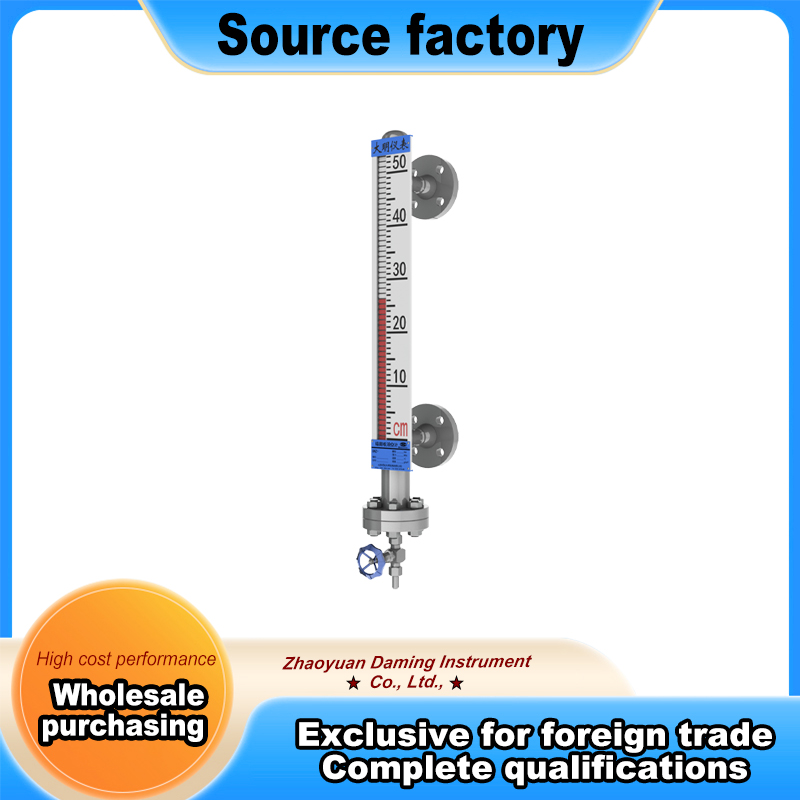

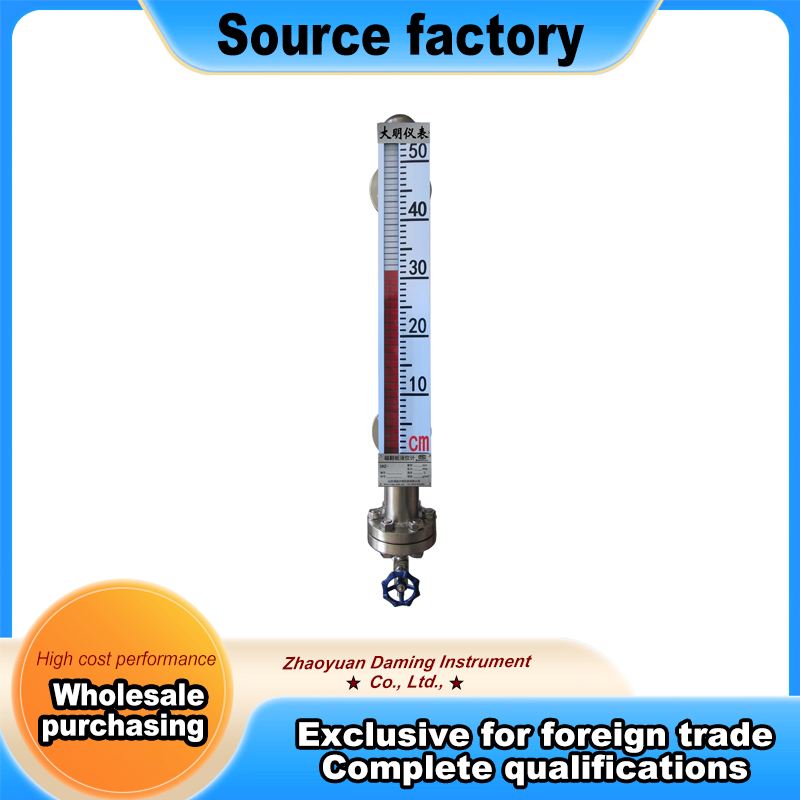

Side Mount Medium Pressure Magnetic Level Gauge The UHZ Series Magnetic Level Gauge includes this side mount medium pressure magnetic level gauge. The unit mounts on the side wall of the tank or pipe through flanges. A magnetic float sits inside the stainless steel main tube. The float rises and falls with the liquid level. The float magnetic field turns the red and white flags outside the tube. The red flags show the liquid level position. The white flags show the area above the liquid. This gives a clear direct reading with no power needed. The main tube is made from 304 or 316L stainless steel. This unit is designed for medium pressure applications. The pressure rating ranges from 2.5MPa to 6.4MPa. The housing handles higher pressure than standard atmospheric versions. The indicator is completely isolated from the process liquid. This makes the unit safe for corrosive and hazardous media. For medium pressure tanks and pipes this side mount type works well. This transmitter has a me…
