Wedge-type Anchors for Concrete

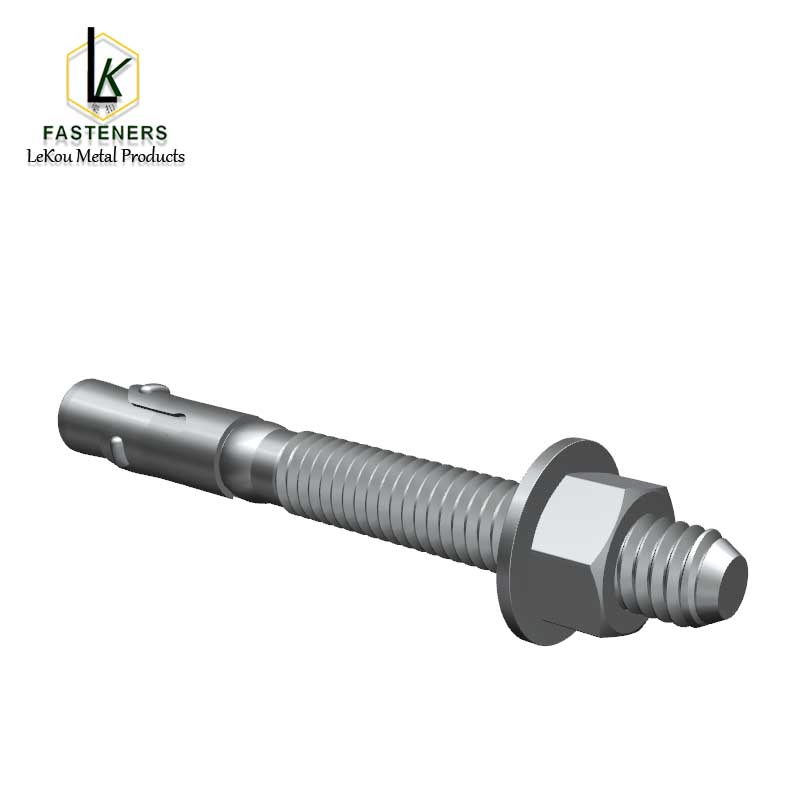

Product Description：Product Name: Wedge type Anchors for concrete Dimensional standards: washer dimensions refer to ANSI/ASME B18.22.1 (SAE), nut dimensions refer to ANSI/ASME B18.2.2 (Table 4)Wedge bolts are composed of four parts: screws, clamps, nuts, and flat washers. This type of anchor bolt has a wedge-shaped base (clamp), which expands on both sides of the reserved hole as it is tightened, forming a tight grip and able to withstand strong pulling forces. Usually, these types of anchor bolts are most practical in concrete structures, but they require reserved holes with diameters that perfectly match the bolt diameter to achieve stronger grip strength. During installation, thread the anchor through your component and insert it into the borehole until the washer and nut make contact with the surface. Then, tighten the nut to expand the base of the anchor. Remove your component by loosening the nut, but the anchor bolt itself cannot be removed.Applications： This type of anchor bo…
