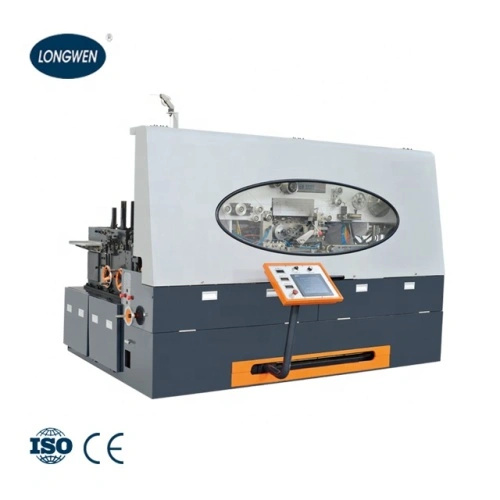

Tin can body welding seam machine

Product Description   Tin can body welding seam machine Product name Can body welding machine Model NEW DODO-500H Welding Speed 65m/min(max) Production Speed Can height 100mm: 550cans/min(Max)Can height 133mm: 450cans/min(Max)Can height 180mm: 330cans/min(Max)Can height 260mm: 250cans/min(Max)Can height 320mm: 200cans/min(Max) Welding Points Distance 0.5~0.9mm Overlap 0.20~0.5mm Sheet thickness 0.16~0.30mm Can Inner Diameter 52~75mm Can Height 70~320mm Material Tinplate, Ni plate Hardness T2.5~DR8 Copper Wire 1.20~1.38mm Welding Frequency 250~850Hz Compressed Air >800L/min , >0.5MPa Coolong Water >0.4MPa , ≤20℃, 720L/min Power Supply 380V, 50HZ, 80KW   Main feature: ♥ Equipped with the most advanced man-computer interface device, the whole operation can be made on the touch screen.♥ Equipped with Schneider Electric Control System for all electrical elements and Servo Mo…
