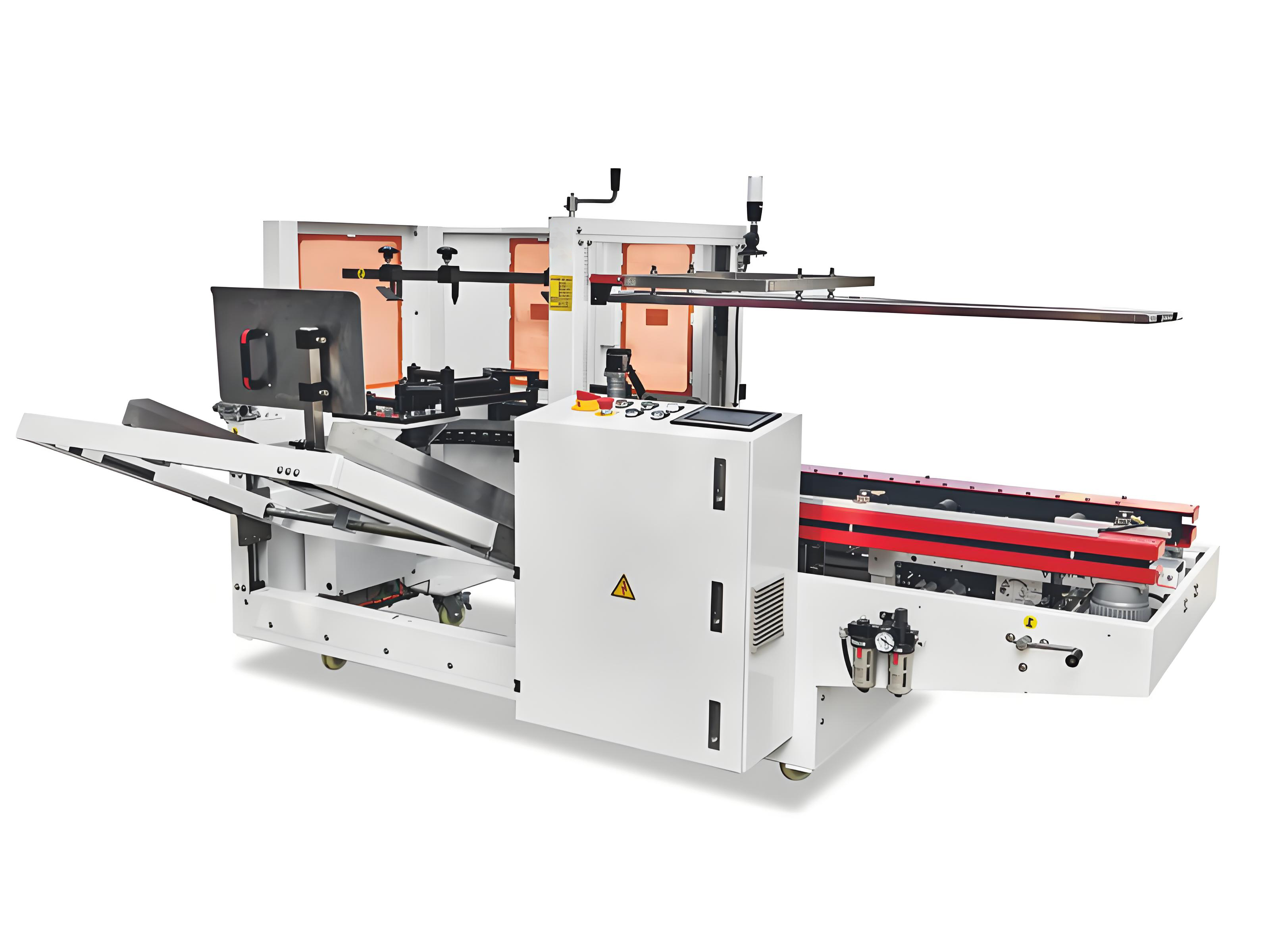

Robotic Forming High-Speed Carton Erector

Robotic Forming High-Speed Carton Erector meets the demands of logistics and production lines for fast, stable carton forming. It employs vertical robotic arm forming technology to efficiently and precisely suction, expand, erect, and bottom-seal flattened cartons, enhancing packaging efficiency and reducing labor costs. Logistics Automated Case Erector Specifications Power Supply: Single-phase 220V / 50Hz / 2.2KW. Air Pressure: 0.6-0.7MPa, stable operation. Dimensions: 2830mm(L) × 1896mm(W) × 1522mm(H), compact structure. Speed: 5-25 boxes/min, adjustable speed. Height: 650mm, easy to operate.   Custom Robotic Carton Solution Strong Adaptability Small: Length 145-300mm × Width 80-200mm × Height 150-250mm Large: Length 250-450mm × Width 180-350mm × Height 150-350mm Tape: Standard 48mm tape, Large model: 48-72mm wide tape. Specification Changeover: For standard models, quickly complete changeover by manually adjusting the magazine, carton stops, discharge width/height, combined wi…
