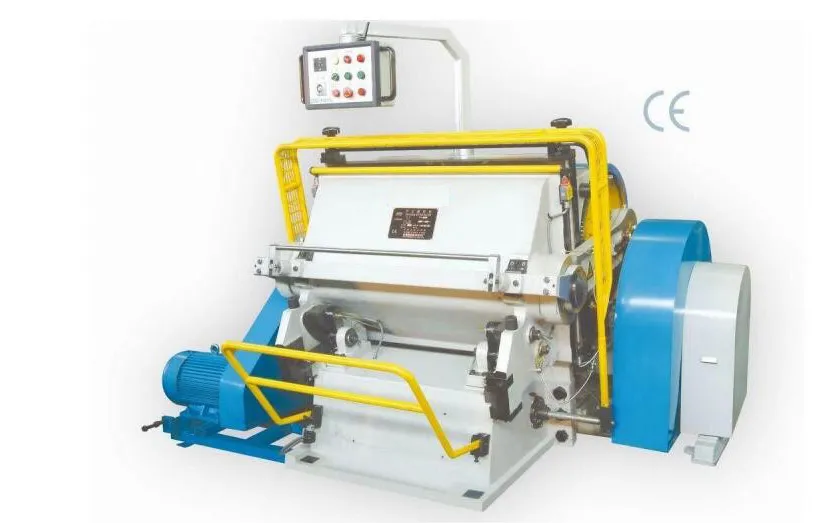

MANUAL DIECUTTER

This is the manual hand feed type diecutting machine for making corrugated boxes with cutting and creasing function. And for duplex board, it is option with hot stamping function.   Specification: Model 720 920 1040 1100 1300 1400 1600 1700 1800 ~ 2500 Max. effective cutting size 750x540mm 960x700mm 1080x760mm 1140x820mm 1350x960mm 1420x1020mm 1640x1270mm 1760x1250mm ... Max. cutting pressure 80x10⁴N 100x10⁴N 140x10⁴N 140x10⁴N 160x10⁴N 160x10⁴N 180x10⁴N 180x10⁴N ... Working Speed 26r/min 26r/min 24r/min 24r/min 14~24r/min 14~24r/min 12~22r/min 12~22r/min ... Creasing length <15m <25m <30m <30m <35m <35m <45m <45m ... Motor power 380V, 2.2kw 380V, 4kw 380V, 4kw 380V, 5.5kw 380V, 7.5kw 380V, 7.5kw 380V, 11kw 380V, 11kw ... Weight 2000kg 3300kg 4500kg 4800kg 6800kg 7200kg 10200kg 11000kg ... Overall size 1350x1050x1450mm 1800x1350x1530mm 2220x1450x1600mm 2240x1500x1730mm 3020x1800x1800mm 3100x1820x1830mm 3540x1900x2000mm 3640x1900x1940mm ...…
