Diamond Dotted Paper DMD

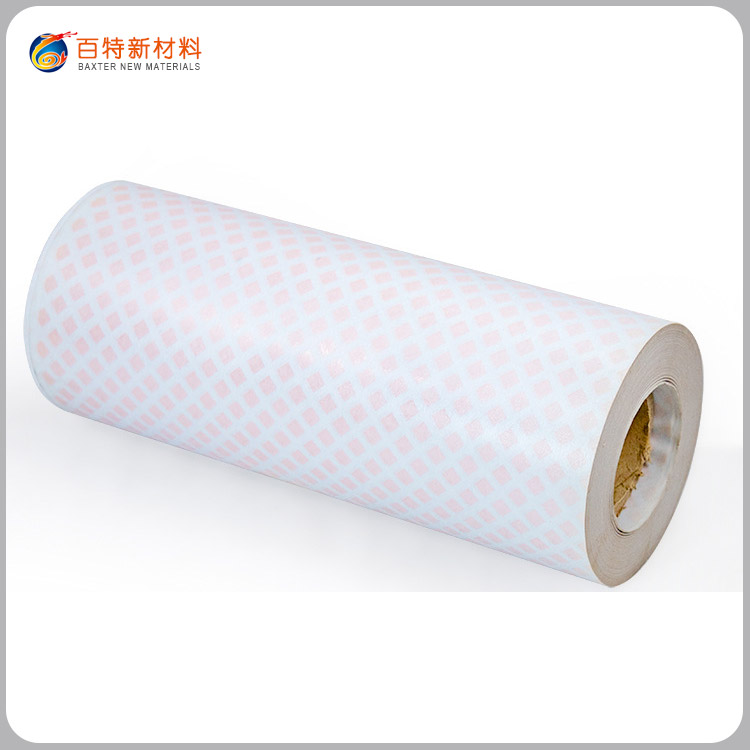

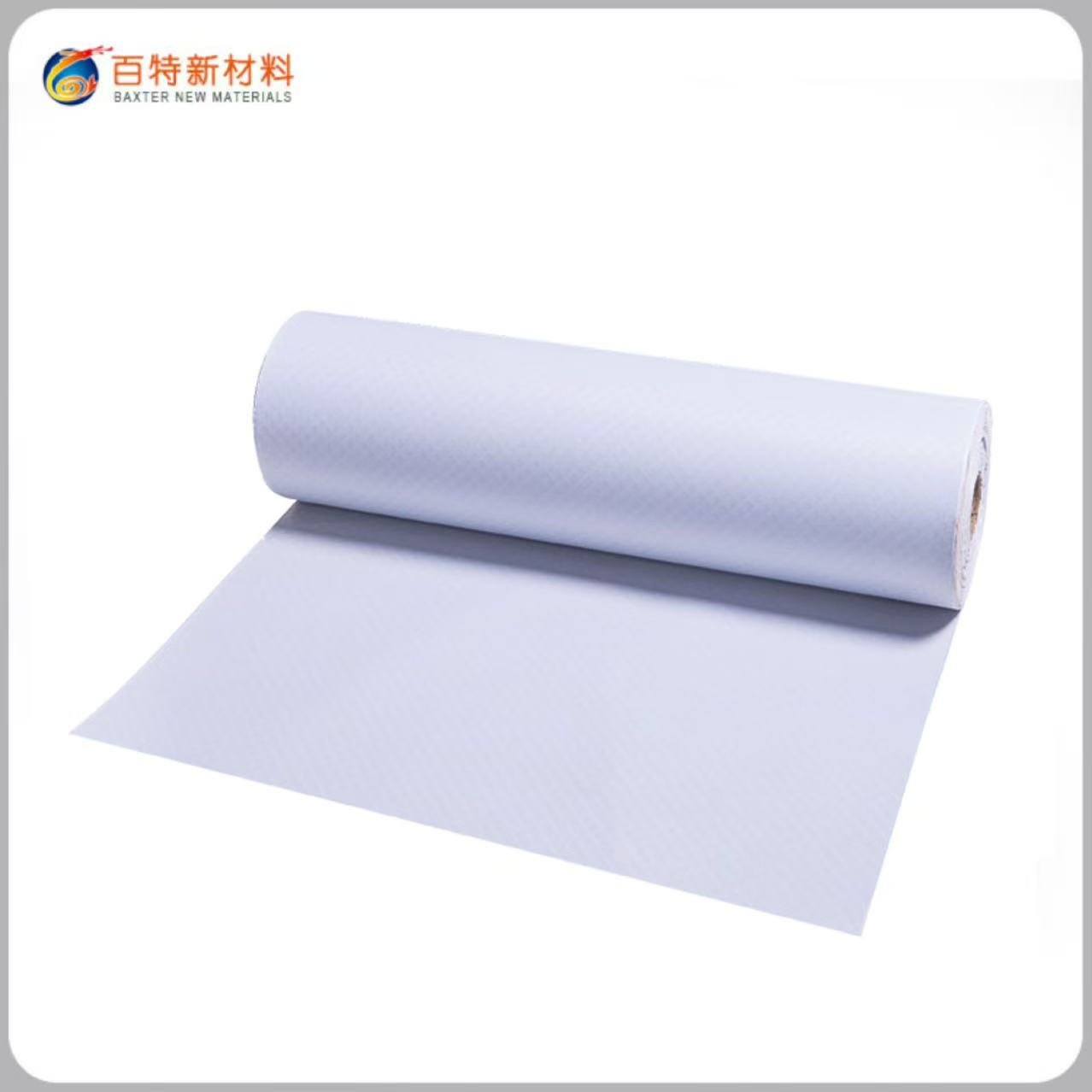

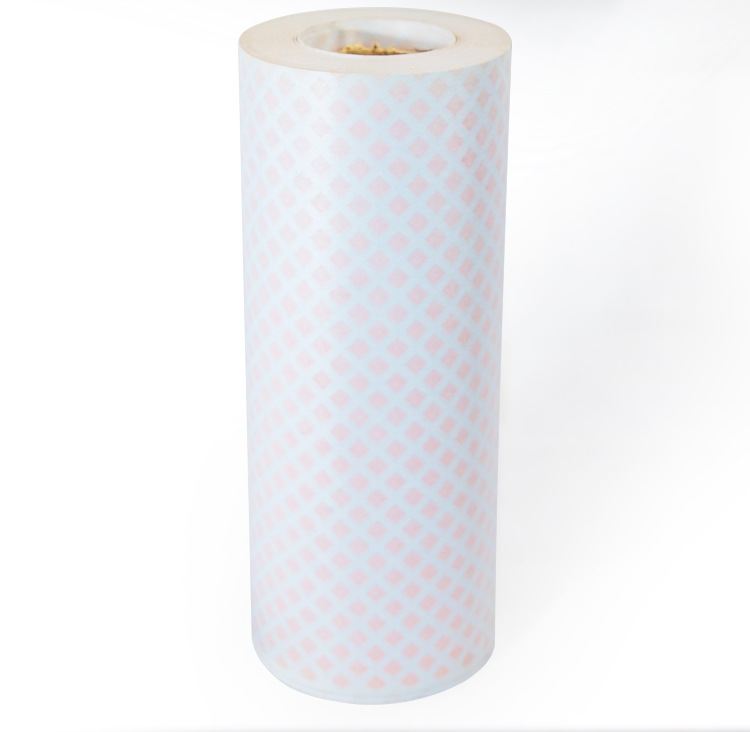

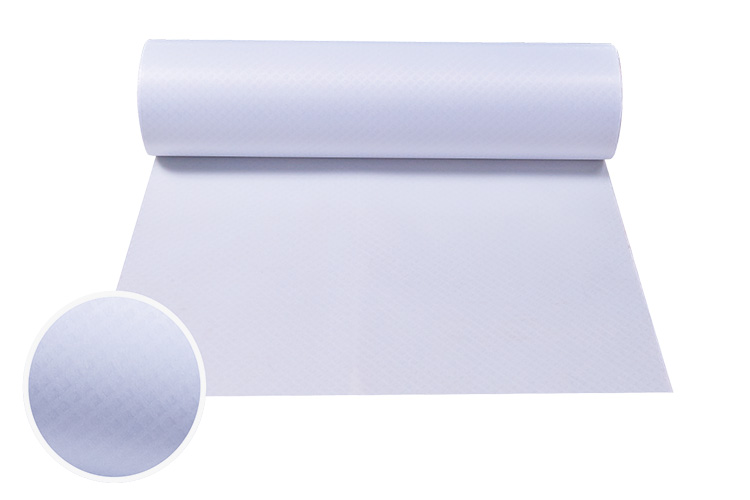

Product Material: Polyester film substrate   Production Process: This product is an insulating material where modified special epoxy insulating resin is coated in a diamond - shaped pattern on electrical - grade polyester film.   Product Dimensions: Can be slit into strips with various widths of 20 mm or more.   Product Applications: Used for interlayer insulation in gas or oil insulation systems of dry - type transformers, current/voltage transformers, insulation for low - voltage coil (aluminum) foil winding gaskets, as well as Class B/F motor slot insulation, turn - to - turn insulation, and other electrical insulating components.   Product Introduction: Diamond dotted paper DMD is an insulating material that coats DMD with special modified epoxy resin in a diamond shape. It is widely used in the interlayer insulation and turn insulation of oil-immersed power transformers. During use, the coating layer begins to melt at a certain temperature during the drying process of the coil, r…
