Casement Window Built-in Insect Screen Panel Screen

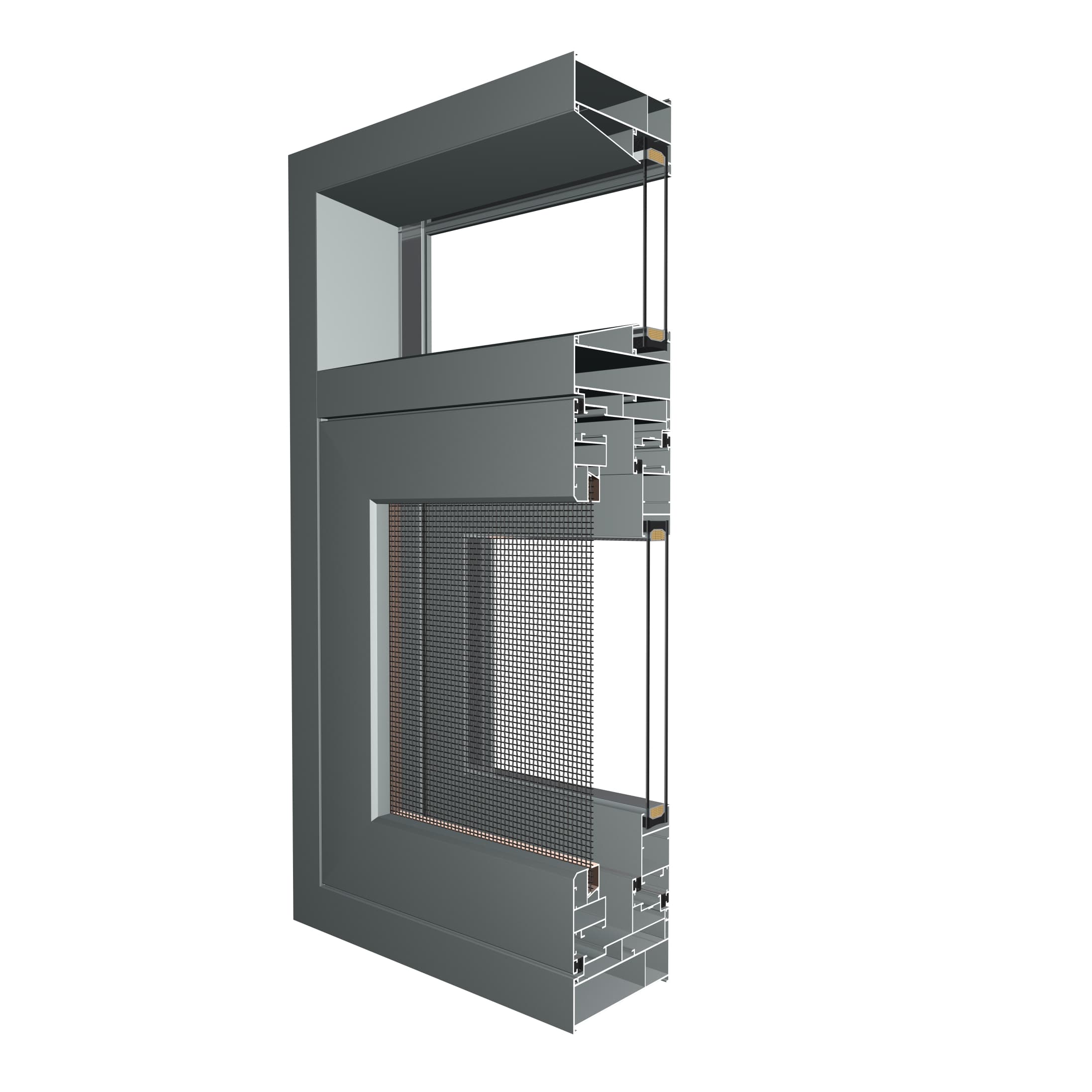

  Product Structure Overview   The standard aluminum alloy casement window with integrated insect screen combines the glass sash and screen sash within a single frame. Its internal structural design addresses insect protection, security, and aesthetics. Below is a breakdown of its structural composition and cross-sectional analysis based on relevant patented technologies.   ---   I. Structural Components   The window system consists of the following core components:   · Frame (Main Frame): The overall framework fixed to the wall, typically of one-piece construction, simultaneously supporting both the glass sash and the screen sash. The profiles are designed with hardware grooves, drainage channels, and sealing gasket installation slots. · Glass Sash: Connected to the frame via hinges or friction hinges, capable of inward or outward casement opening. The sash frame holds insulating glass, secured and sealed with glazing beads or sealing strips. · Screen Sash: Connected to the frame v…

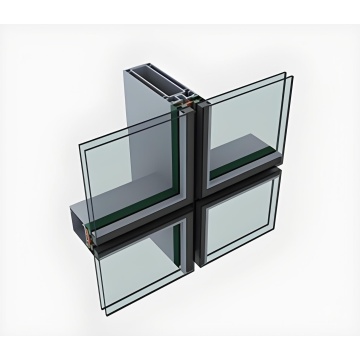

Coated Glass Curtain Wall Aluminum Profile Special Aluminum Veneer Wire Mesh Glass Doors And Windows
