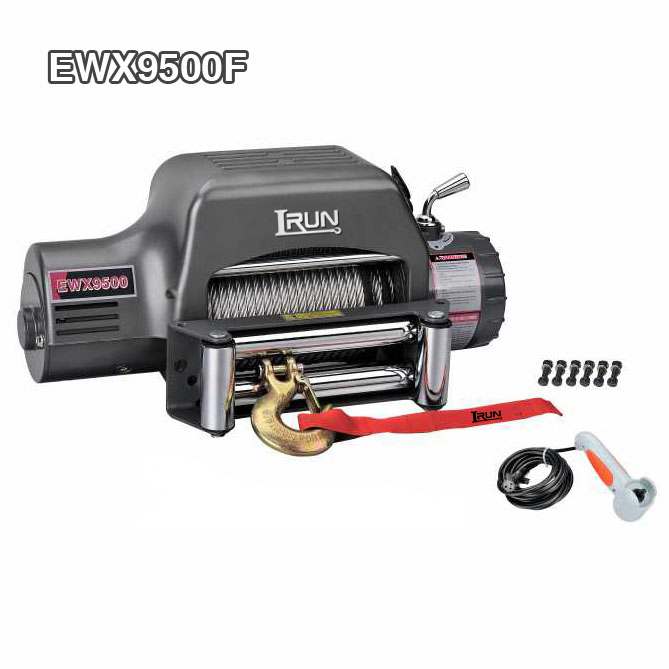

9500lbs 12V or 24V Electric Recovery Winches With Stand-up control Box
EWX9500FItem no. EWX9500F is a 9500 lbs Electric Recovery Winch with a stand up style control box. It’s be of Recovery Winch EWX Series excellent features such as perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches’s extreme transmission efficiency and reliable safety operation.
Features:1. Full steel reducer gear2. patent three stage planetary gear reducer3. Free spooling clutch4. Automatic screw cone braking action5. Short Series Wound Motor6. DC 12V or DC 24V Power drive optional7. Remote control through control box and switch8. Wireless remote control available F type fixed in control box9. SWR tensioner available
EWX9500
SPECIFICATION
Rated line pull
9500 lbs (4309 kgs)
Motor: Series Wound
12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp
24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp
Gear…
