417 Stop Limit Pin Shaft Fastener

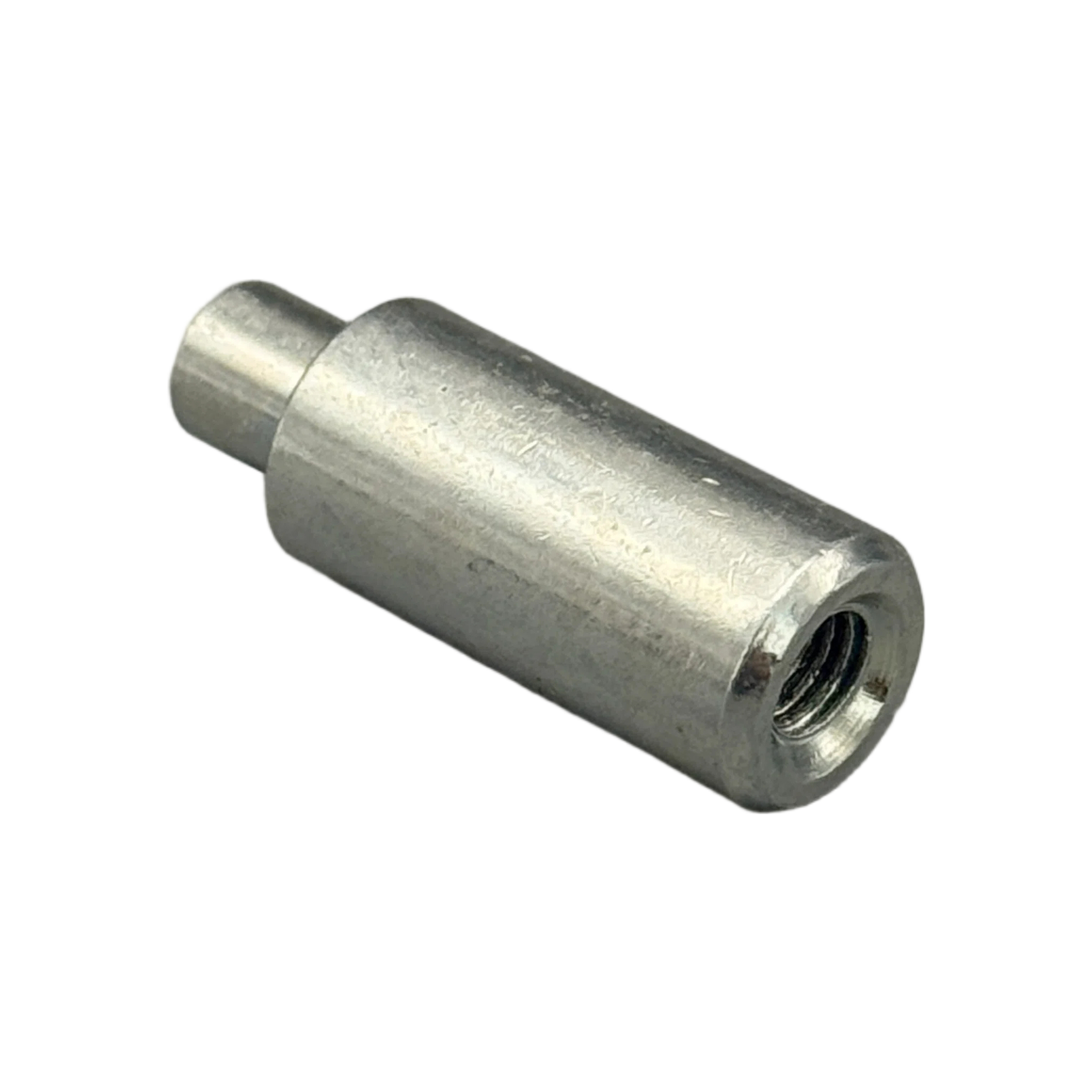

417 Stop Limit Pin Shaft Fastener Product Overview The 417 Stop Limit Pin Shaft Fastener is a stepped positioning stop pin within our Pin shaft spare part series. As precise Furniture & machinery positioning pin fitting, it features an integrated flange stop shoulder and solid shaft body, engineered for stroke limitation, hinge rotation angle restriction and fixed-depth assembly positioning on folding furniture, light trolleys and small mechanical swing assemblies. We supply rust-proof standard Stainless steel locating dowel pin alternatives, matched locking Carbon steel cotter clevis pin auxiliary hardware, and full-service Custom machining solid positioning shaft non-standard dimension and structural customization for revised limit frame designs. Technical Specifications Dimension & Structural Design Fixed 417 model stop limit layout: one end with circular flange stop shoulder for accurate stroke restriction, middle smooth solid positioning journal, optional tail thread or p…
