28KHz Fabric Ultrasonic Cut Seal Machine

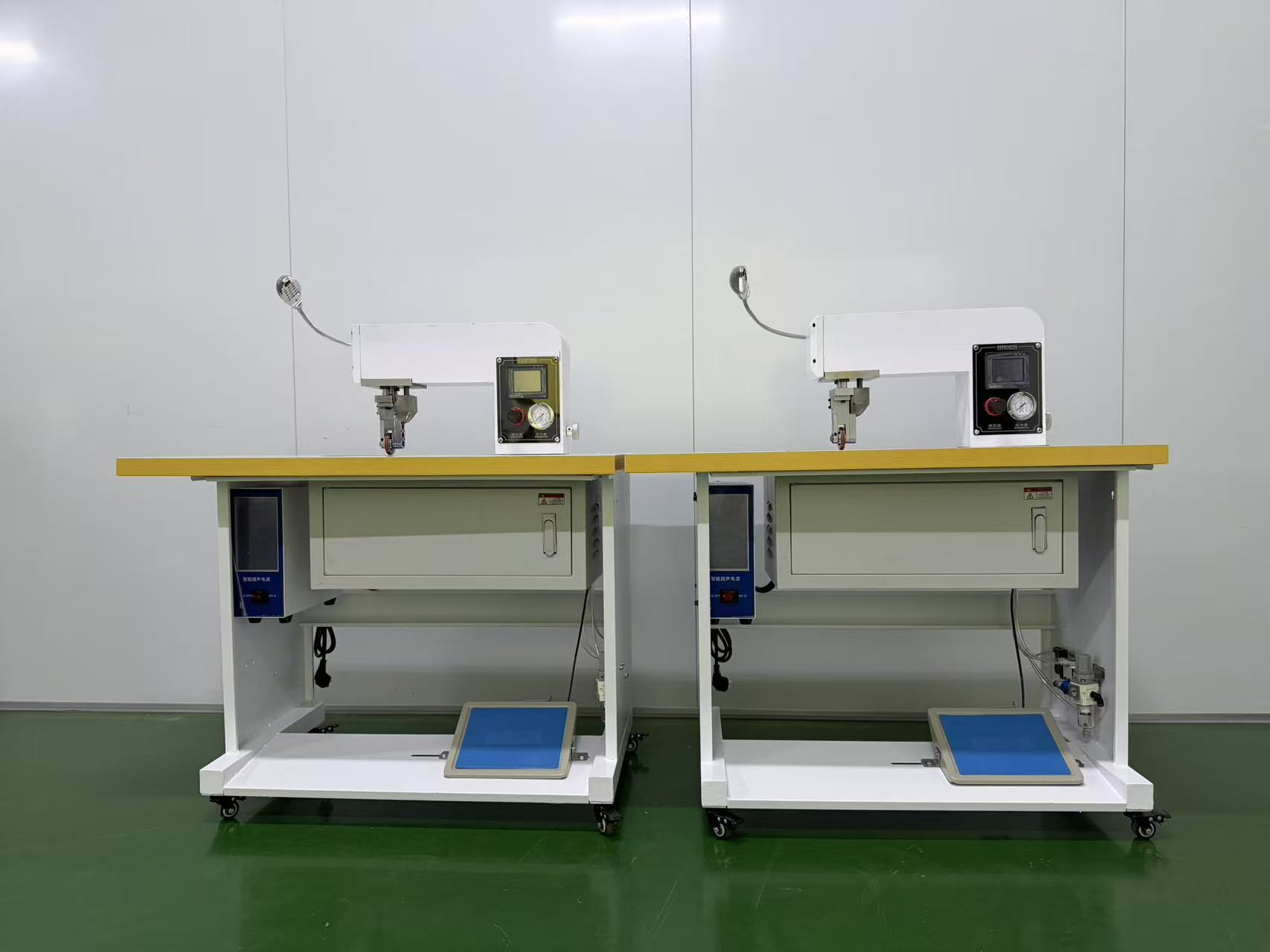

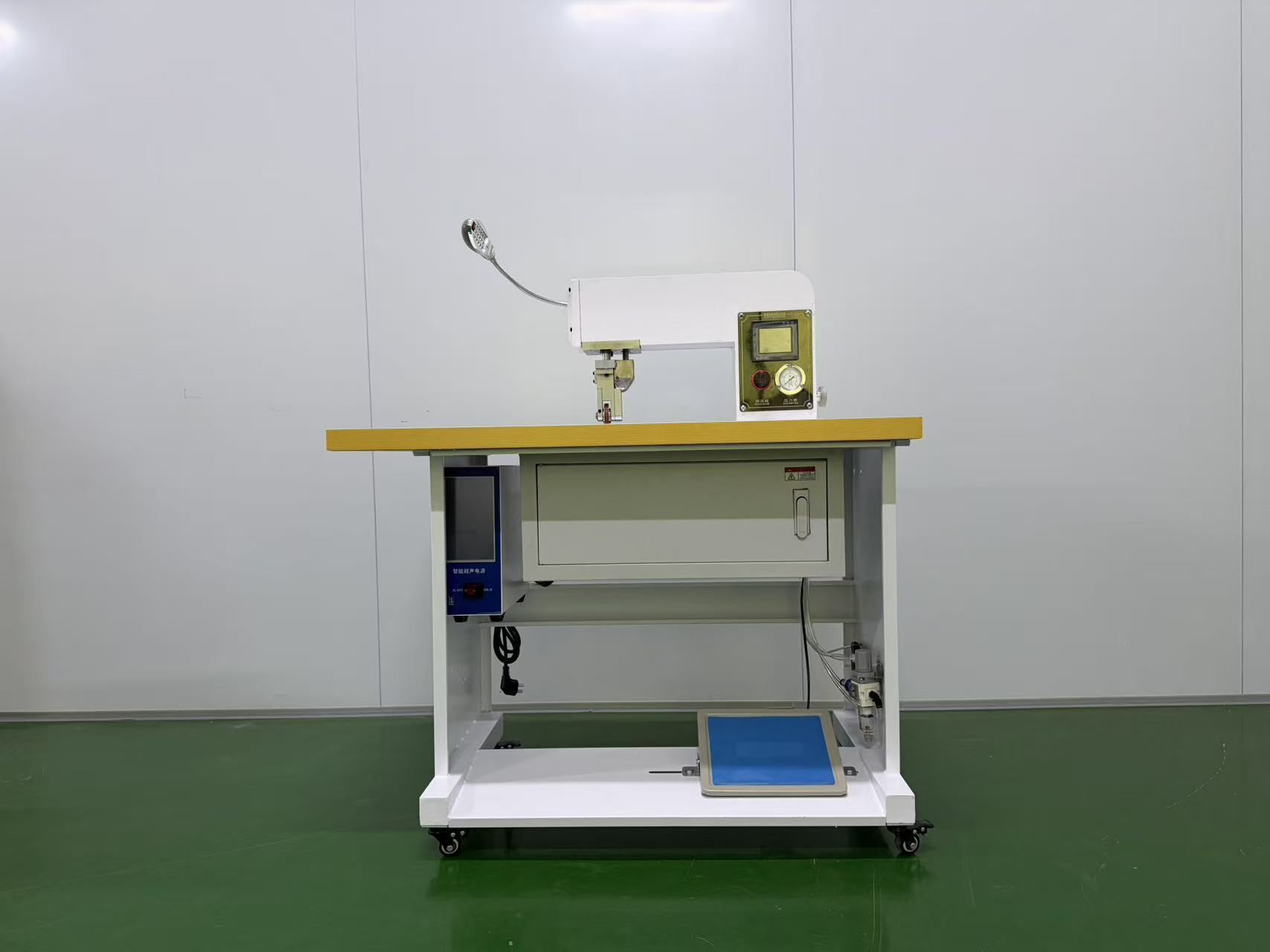

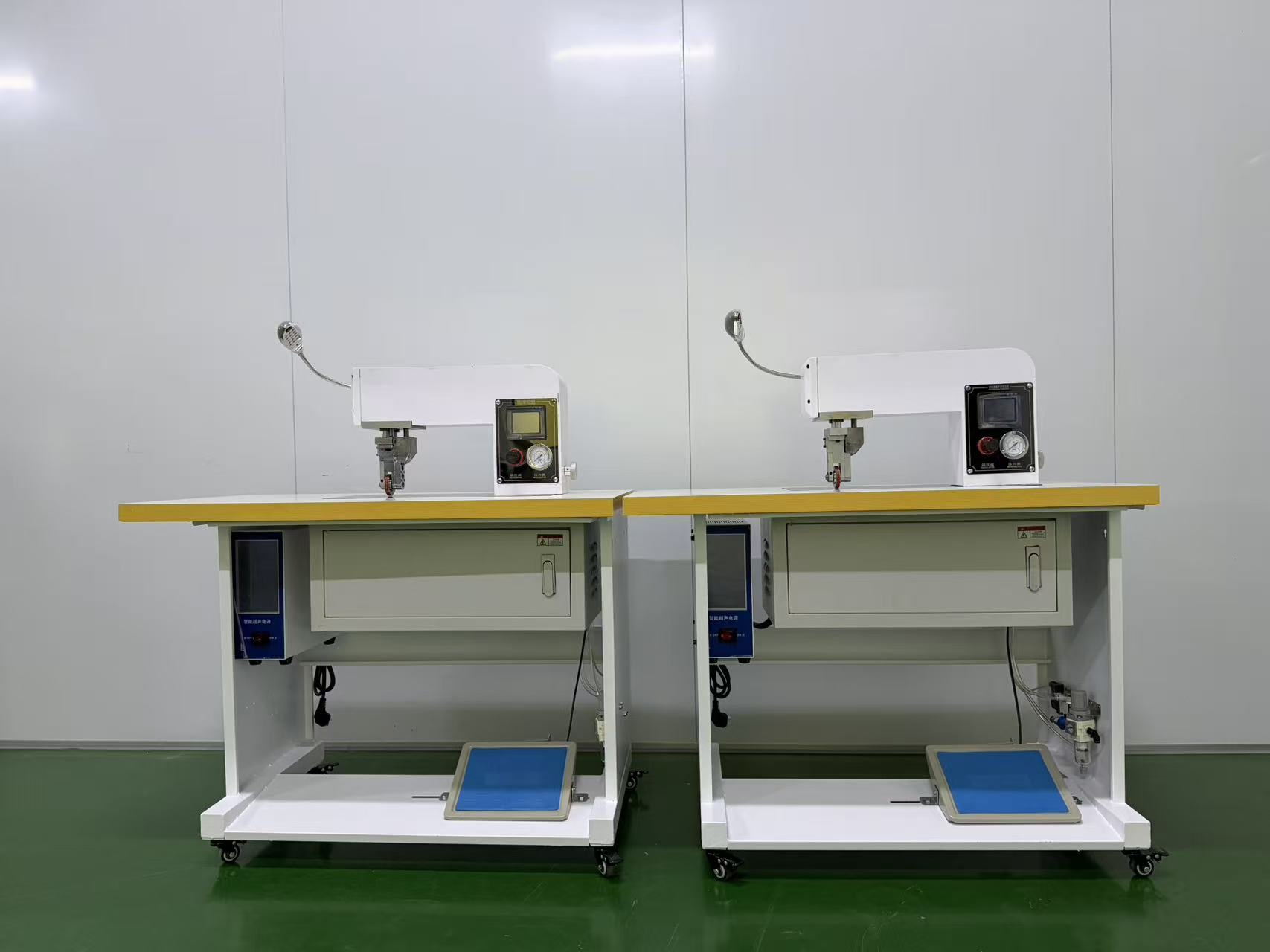

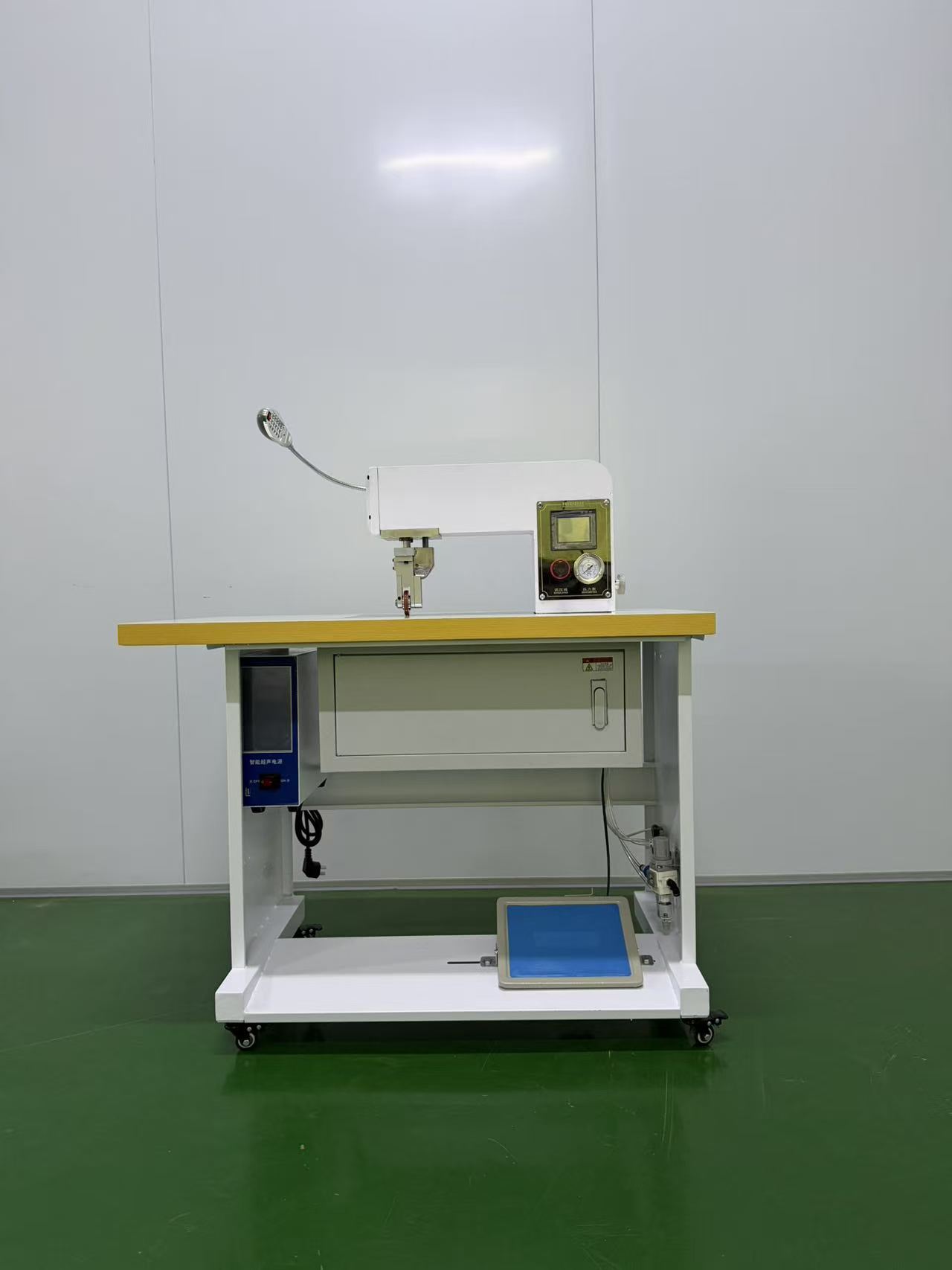

This integrated textile processing unit adopts streamlined table-type frame with movable casters, equipped with PLC programmable control panel, adjustable foot pedal and flexible supplementary work lamp. The built-in 28KHz low-noise ultrasonic drive system and pressure-adjustable cutting head realize precise fabric processing, and matched replaceable pattern rollers can fulfill diversified pattern pressing demands. The standard finished model of this processing solution is 28KHz Fabric Ultrasonic Cut Seal Machine.   Working Principle   The ultrasonic generator converts mains power into high-frequency vibration energy, which is transmitted to the radial high-hardness welding head to generate localized high heat. Fabric fiber is instantly fused and sealed under proper pressure, finishing trimming and edge sealing synchronously without traditional thread stitching. The radial structural design makes it perform excellently for curved and irregular edge processing, which is the core advant…
